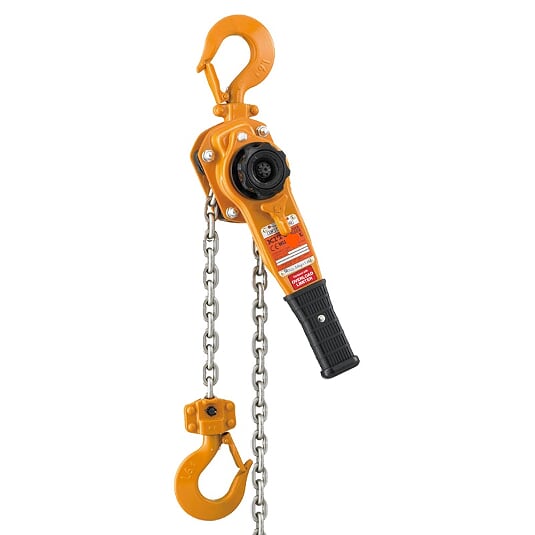

1.6 TON LEVER HOIST , Made In Japan

LEVER HOIST, 1600KG (1.6TON) X 1.5M
– Smaller and lighter easy to carry and store, much easier to use, even in a narrow working spaces
– Nickel-plated chain, produces world-class performance, toughness and resistance to corrosion & wear
– High-strength frame High grade alloy steel with solid construction
– Lever Handle with A new shape and thicker material creates a very strong lever handle
– Hook Latch with safety mechanism with Thicker material makes the latch stronger, and engagement with the tip of the hook creates secure closure
– Hooks are forged from high strength alloy steel allowing the larger capacities – 21/2 through 9 ton – to use hooks that are smaller and lighter
– Cap Nuts fasten the gear case and brake cover protecting the screw from damage and making maintenance easier

Rated load (W.L.L.) / 1.6
Standard lift (m) / 1.5
Hand-pull to lift full load (n) (kg) / 333 (34)
Load chain diameter x chain fall (mm) / 7.1×1
Test load (kg) / 2400
Mass (Net weight) * (kg) / 8
Shipping weight (Approx.)(kg) / 8.3
Weight for additional one meter of lift (kg) / 1.1
Dimensions (mm)
a / 159
b / 126
C / 335
D / 265
e / 100
g / 32
s / 42.5
t / 19
