2.5 TON LEVER HOIST, Made In Japan

Features

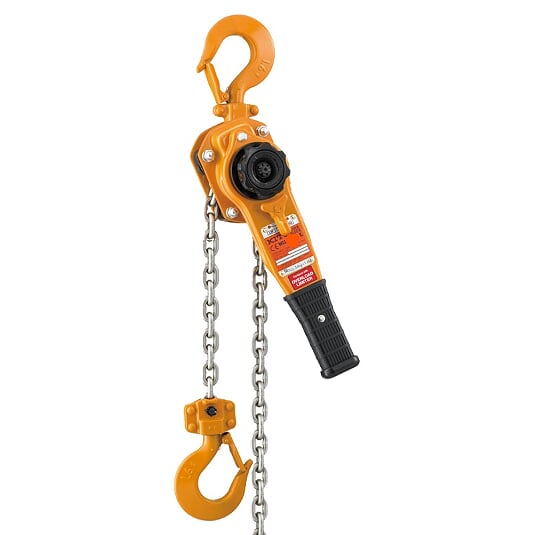

LEVER HOIST from KITO, 2.5TON X 1.5MTR.
Smaller and lighter easy to carry and store, much easier to use, even in a narrow working spaces.
Nickel-plated chain, produces world-class performance, toughness and resistance to corrosion & wear.
High-strength frame High grade alloy steel with solid construction.
Lever Handle with A new shape and thicker material creates a very strong lever handle.
Hook Latch with safety mechanism with Thicker material makes the latch stronger, and engagement with the tip of the hook creates secure closure.
Hooks are forged from high strength alloy steel allowing the larger capacities.
21/2 through 9 ton – to use hooks that are smaller and lighter.
Cap Nuts fasten the gear case and brake cover protecting the screw from damage and making maintenance easier.

Rated load (W.L.L.) / 2.5
Standard lift (m) / 1.5
Hand-pull to lift full load (n) (kg) / 363 (37)
Load chain diameter x chain fall (mm) / 8.8×1
Test load (kg) / 3800
Mass (Net weight) * (kg) / 11.2
Shipping weight (Approx.)(kg) / 11.6
Weight for additional one meter of lift (kg) / 1.7
Dimensions (mm) / A / 173
Dimensions (mm) / B / 150
Dimensions (mm) / C / 375
Dimensions (mm) / D / 265
Dimensions (mm) / E / 102
Dimensions (mm) / G / 36.5
Dimensions (mm) / S / 47
Dimensions (mm) / T / 21
