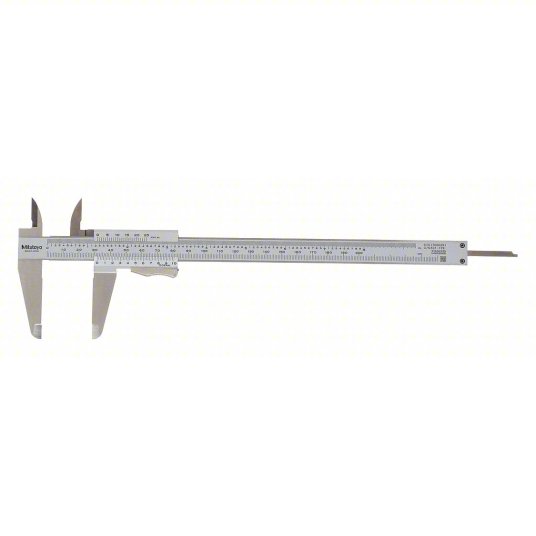

4-Way Vernier Caliper, 0 in to 8 inch/0 mm to 203.2 mm Range, +/-0.03 mm Accuracy

MITUTOYO Vernier Caliper 531-129
Vernier calipers are measuring instruments that are primarily used to measure linear dimensions. The diameter of circular objects can be measured with these calipers. Can measure outside and inside dimensions, depth, and steps. The slider moves only when the spring-loaded thumb clamp is depressed. Mitutoyo dual-scale, high accuracy/resolution vernier caliper equipped with a thumb clamp and standard outside and inside jaws. Hardened stainless steel construction with easy-to-read, satin-chromed scales. The Part Number is 531-129

MITUTOYO Vernier Caliper Features
Vernier calipers have a fixed jaw paired with a sliding jaw that moves along a graduated scale to take inside and outside measurements. The jaws are used to contact the opposite sides of an object, workpiece, or feature. Operators read the main and vernier scales and add the values together to determine the reading.
Hardened stainless steel construction
4 way measurement OD ID depth step
The small vernier face angle (14°) provides easy reading
Lock screw for holding the sliding jaw position

Range / 0 inch to 8 inch; 0 mm to 203.2 mm
Graduations / 0 inch/0 mm (Lower Scale); 6 inch/200 mm (Upper Scale)
Accuracy / +/-0.03 mm
Caliper Material / Stainless Steel
Dimension Type / Inch/Metric
Graduations – Lower Scale / 0 inch/0 mm
Graduations – Upper Scale / 0.001 inch
Jaw Actuation Type / Thumb Clamp
Jaw Depth / 1-31/32 inch
Maximum Measurement – Decimal Inch / 8 inch
Maximum Measurement – Fractional Inch / 8 inch
Maximum Measurement – mm200 mm
Measurements / 4-Way
Measures Depth / Yes
Measures Inside Dimension / Yes
Measures Outside Dimension / Yes
Measures Step / Yes
Minimum Measurement – Decimal Inch / 0 inch
Minimum Measurement – Fractional Inch / 0 inch
Minimum Measurement – mm / 0 mm
Operation Type / Mechanical
Case Included / Yes

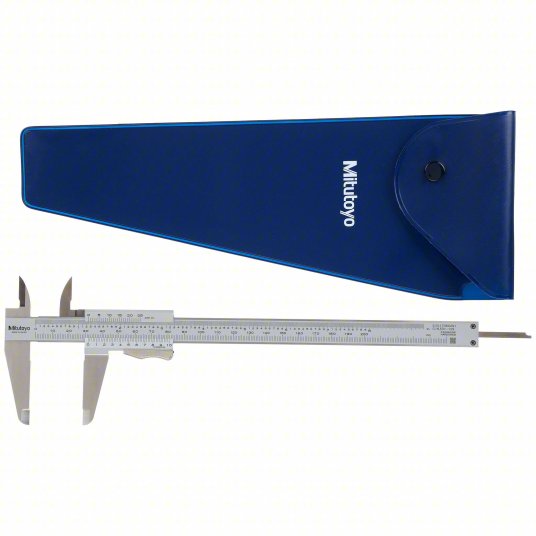

Case Type / Vinyl Holster with Fitted Carton
Finish / Satin Chrome
Jaw Shape / Standard Jaw
