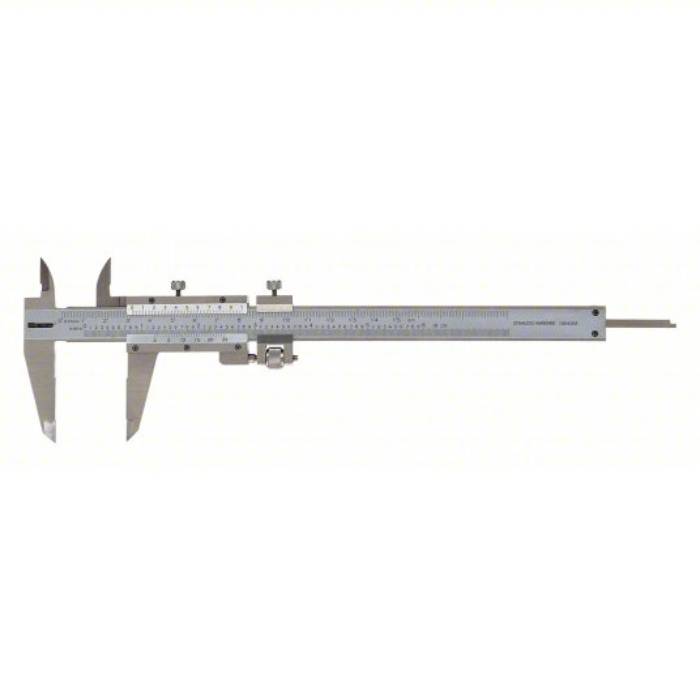

4-Way Vernier Caliper, 0 inch to 6 inch / 0 mm to 150 mm Range, +/-0.001 in/+/-0.03 mm Accuracy

Westward 4-Way Vernier Caliper 4KU77 Features

Vernier calipers have a fixed jaw paired with a sliding jaw that moves along a graduated scale to take inside and outside measurements.
The jaws are used to contact the opposite sides of an object, workpiece, or feature. Operators read the main and vernier scales and add the values together to determine the reading.
These calipers require expertise to read correctly.

Range / 0 inch to 6 inch; 0 mm to 150 mm
Graduations / 0.001 inch
Accuracy / +/-0.001 inch; +/-0.03 mm
Caliper Material / Hardened Steel
Dimension Type / Inch/Metric
Graduations – Lower Scale / 0.001 inch
Graduations – Upper Scale / 0.02 mm
Jaw Actuation Type / Slide
Jaw Depth / 1-3/4 inch
Maximum Measurement – Decimal Inch / 6 inch
Maximum Measurement – Fractional Inch / 6 inch
Maximum Measurement – mm150 mm
Measurements / 4-Way
Measures Depth / Yes
Measures Inside Dimension / Yes
Measures Outside Dimension / Yes
Measures Step / Yes
Minimum Measurement – Decimal Inch / 0 inch
Minimum Measurement – Fractional Inch / 0 inch
Minimum Measurement – mm / 0 mm

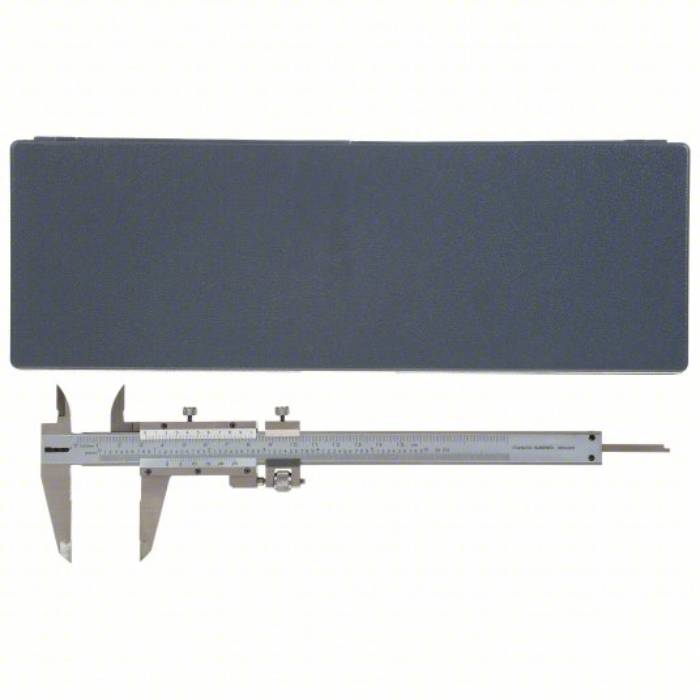

Case Included / Yes
Case Type / Plastic
Depth Rod Shape / Rectangular
Finish / Satin Chrome
Jaw Depth – Upper Jaw / 0.63 inch
Jaw Shape / Knife-Edge Jaw
