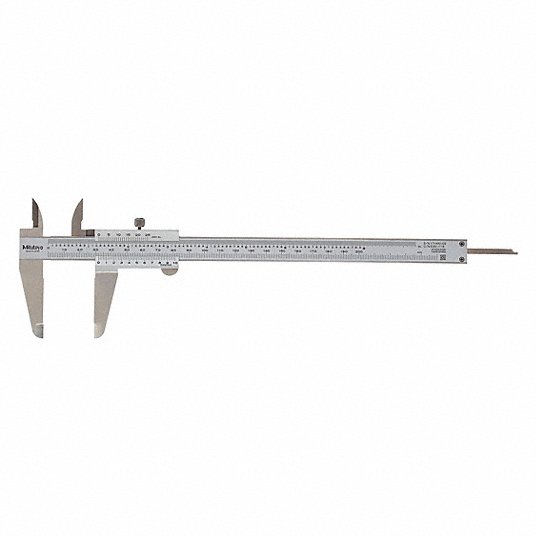

4-Way Vernier Caliper, Range 0 in to 8 in, 0 mm to 203.2 mm, Graduations 0.05 mm

Vernier calipers have a fixed jaw paired with a sliding jaw that moves along a graduated scale to take inside and outside measurements. – The jaws are used to contact the opposite sides of an object, workpiece, or feature. – Operators read the main and vernier scales and add the values together to determine the reading. – These calipers require expertise to read correctly.

Range / 0 in to 8 in, 0 mm to 203.2 mm
Graduations / 0.05 mm
Accuracy / +/-0.03 mm
Caliper Material / Stainless Steel
Dimension Type / Inch/Metric
Graduations – Lower Scale / 0.05 mm
Graduations – Upper Scale / 0.05 mm
Jaw Actuation Type / Thumb Wheel
Jaw Depth / 1 31/32 in
Maximum Measurement – Decimal Inch / 8 in
Maximum Measurement – Fractional Inch / 8 in
Maximum Measurement – mm / 203 mm
Measurements / 4-Way
Measures Depth / Yes
Measures Inside Dimension / Yes
Measures Outside Dimension / Yes
Measures Step / Yes
Minimum Measurement – Decimal Inch / 0 in
Minimum Measurement – Fractional Inch / 0 in
Minimum Measurement – mm / 0 mm
Operation Type / Mechanical

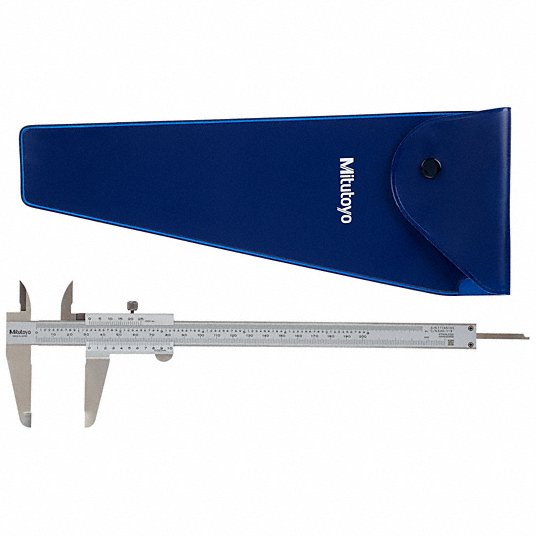

Case Included / Yes
Case Type / Vinyl Holster with Fitted Carton
Finish / Satin Chrome
Jaw Shape / Standard Jaw
With Locking Nut / Yes
