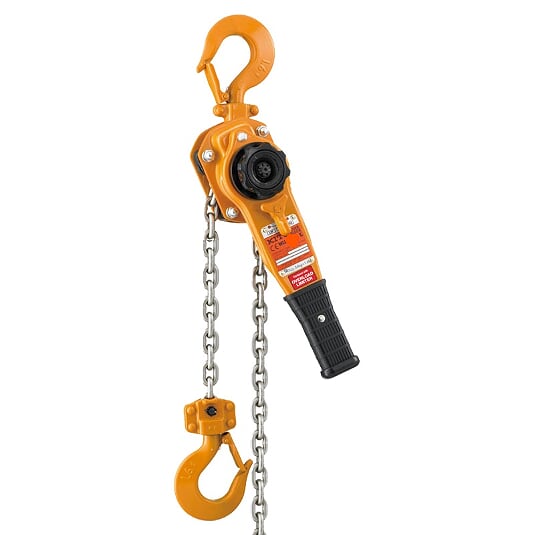

6.3 TON LEVER HOIST, Made In Japan

LEVER HOIST from KITO, 6.3TON X 1.5MTR
– Smaller and lighter easy to carry and store, much easier to use, even in a narrow working spaces
– Nickel-plated chain, produces world-class performance, toughness and resistance to corrosion & wear
– High-strength frame High grade alloy steel with solid construction
– Lever Handle with A new shape and thicker material creates a very strong lever handle
– Hook Latch with safety mechanism with Thicker material makes the latch stronger, and engagement with the tip of the hook creates secure closure
– Hooks are forged from high strength alloy steel allowing the larger capacities – 21/2 through 9 ton – to use hooks that are smaller and lighter
– Cap Nuts fasten the gear case and brake cover protecting the screw from damage and making maintenance easier

Rated load (W.L.L.) / 6.3
Standard lift (m) / 1.5
Hand-pull to lift full load (n) (kg) / 372 (38)
Load chain diameter x chain fall (mm) / 10×2
Test load (kg) / 7900
Mass (Net weight) * (kg) / 26
Shipping weight (Approx.)(kg) / 27
Weight for additional one meter of lift (kg) / 4.7
Dimensions (mm)
A / 190
B / 217
C / 540
D / 415
E / 112
G / 50
S / 60
T / 34
