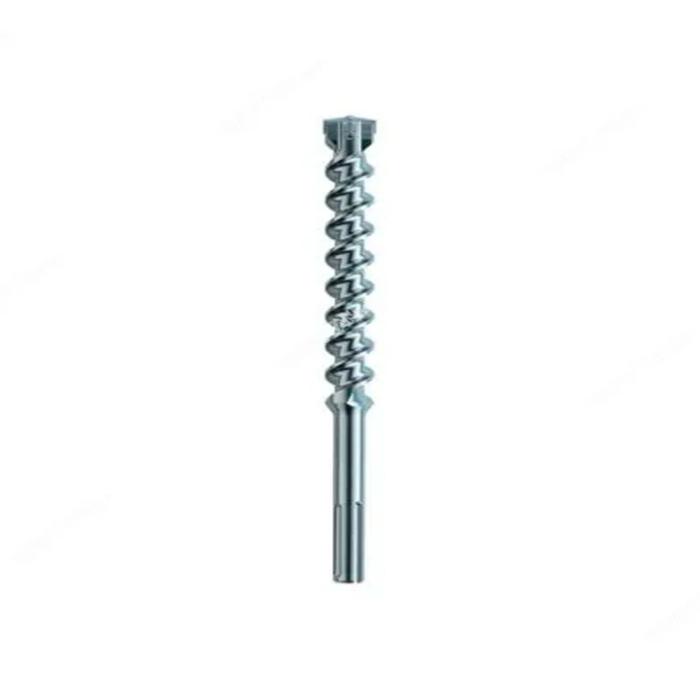

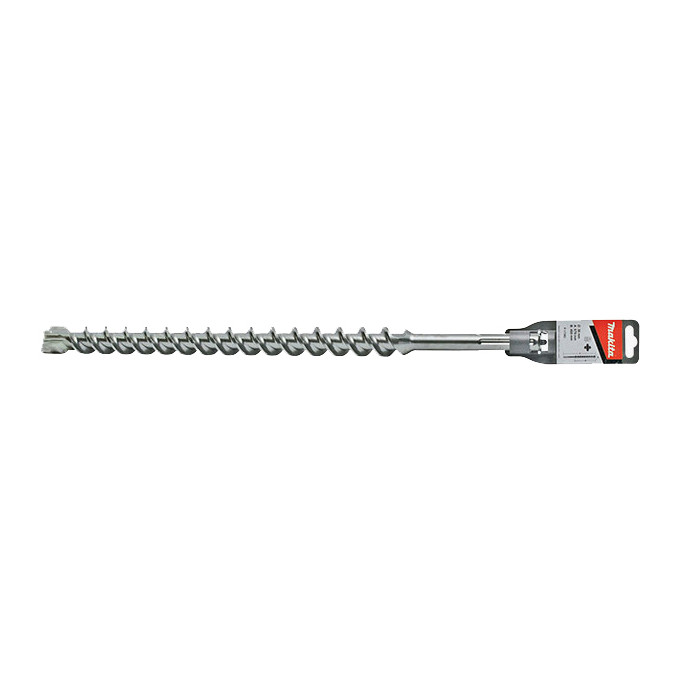

Accessories, SDS-MAX ZENTRO Drill Bits (14x340mm)

Adapted for SDS-MAX Hammers
– Ø 12 to 15 mm : 2 cutter
– Ø 16 – 50mm: 4 Cutter new carbides for better performance in
reinforce concrete
– Ø 32mm to 50mm: 4 Cutter and additionally reinforced carbide tip
– Specially developed robust head geometry ensures that even toughest applications can be mastered.
– Carbide Tip The optimal 4×90° carbide cutting edge symmetry prevents seizing up on hitting reinforcing steel.
– Fast Drilling Large, robust secondary cutters with dynamically curved cutting tips actively support the main carbide tip during fast drilling.
– Flute The drilling debris is transported fast in the large-volume flute geometry.
– Accuracy Centering point with 130° point angle ensures highly accurate, precise drilling and guarantees optimal drill guidance.
The individual wear marking is an indicator for evaluating the dimensional stability of the anchor holes.
– Impact Energy The reinforced-core flute achieves the optimum between volume and break resistance. Vibrations are dampened and resulting in more impact energy on the carbide tip.

Bit Dia (mm) / 14
Overall Length (mm) / 340
Working Length (mm) / 200
Per Pkg / 1
