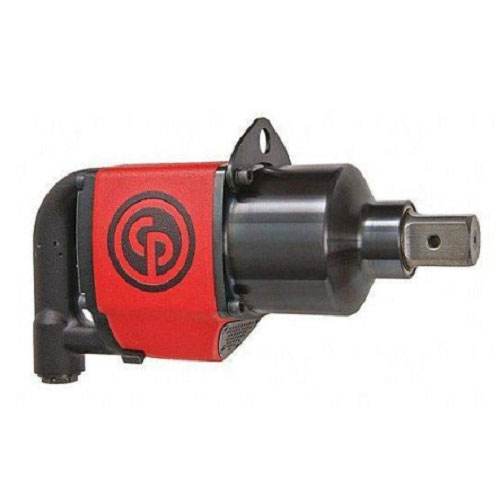

AIR POWERED IMPACT WRENCH

Features

These air-powered impact wrenches have a standard length anvil and a D-handle to increase stability.
D-handle impact wrenches are large tools that are meant to be held with both hands.
The user’s hands directly in line with the tool’s body to allow maximum control and pressure application.

D-handle to increase stability
1 1/2 inch Square Drive Size for heavy duty jobs
Tools with an additional side or top handle provide additional leverage during heavy-duty applications
They place the user’s hands directly in line with the tool’s body to allow maximum control and pressure application
Premium Quality For The Most Demanding Applications

Power Source / Air Powered
Air Consumption / 85 cfm
Air Inlet / 1/2 in NPT
Air Pressure / 90 psi
Max. Air Pressure / 90 psi
Min. Air Pressure / 90 psi
Min. Hose Size / 5/8 in
Exhaust Location / Bottom
Duty Rating / Industrial Duty
Breakaway Torque / 5, 900 ft-lb
Fastening Torque / 4, 055 ft-lb
Free Speed / 2, 800 RPM
Impact Rated / Yes
Impact Sound Level / 109 dB
Impacts per Minute / 750
Number of Speed Settings / 3
Power to Weight Ratio / 167.1 ft-lb/lb
Max. Bolt Capacity / 1 7/8 in
Drive Size / 1 1/2 in Square
Drive Type / Standard
Retainer Type / Through Hole
Clutch Style / Rocking Dog
Tool Style / Compact
Vibration Level / 13.6 m/sq sec
Overall Length / 16 in
Handle Material / Aluminum
Housing Material / Steel
Handle Type / D-Handle
Tool Brand / Chicago Pneumatic
Features / Monster Power For The Light Weight And Compact Size, Premium Quality For The Most Demanding Applications, Reversible And Teasing Steel Trigger
