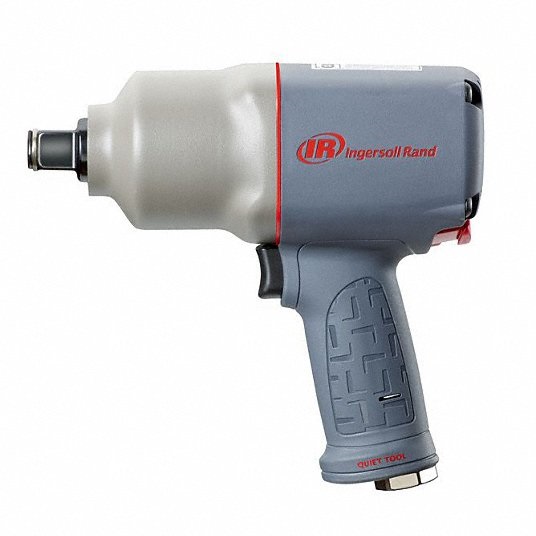

Air Powered, Impact Wrench, 90 psi, 1,100 ft-lb Fastening Torque 13E913

– Compact pistol-grip air-powered impact wrenches (sometimes called stubby wrenches) have a shorter front-to-back length than standard pistol-grip impact wrenches, allowing for access to tight spaces.
– They have higher torque and larger drive sizes than inline impact wrenches, but often have lower torque than full-size tools.
– The pistol grip has a trigger that is pressed to activate the wrench.
– Pistol grips provide ergonomic handling when working on vertical surfaces from the user’s waist to chest, horizontal surfaces at mid-thigh or lower, and horizontal surfaces directly overhead.

Air Consumption / 32 cfm
Air Inlet / 1/2 in NPT Female
Air Pressure / 90 psi
Max. Air Pressure / 100 psi
Min. Air Pressure / 90 psi
Min. Hose Size / 1/2 in
Exhaust Location / Bottom
Duty Rating / Industrial Duty
Breakaway Torque / 1,350 ft-lb
Fastening Torque / 1,100 ft-lb
Free Speed / 7,000 RPM
Impact Rated / Yes
Impact Sound Level / 96 dB
Impacts per Minute / 1,150
Number of Speed Settings / 4
Power to Weight Ratio / 182.4 ft-lb/lb
Max. Bolt Capacity / 3/4 in
Drive Size / 3/4 in Square
Drive Type / Standard
Retainer Type / Friction Ring, Through Hole

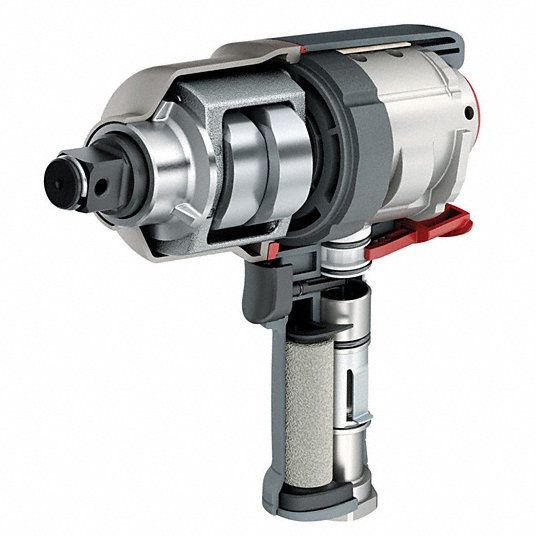

Clutch Style / Twin Hammer
Tool Style / Compact
Vibration Level / 8.7 m/sq sec
Overall Length / 8 1/2 in
Handle Material / Composite
Housing Material / Composite
Handle Type / Pistol Grip
Tool Brand / Ingersoll Rand
Features / Max Durability, Max Power, Max Productivity
Tool Weight / 7.4 lb
Standards / EN ISO 11148-6, EN ISO 15744, EN ISO 28927-2
