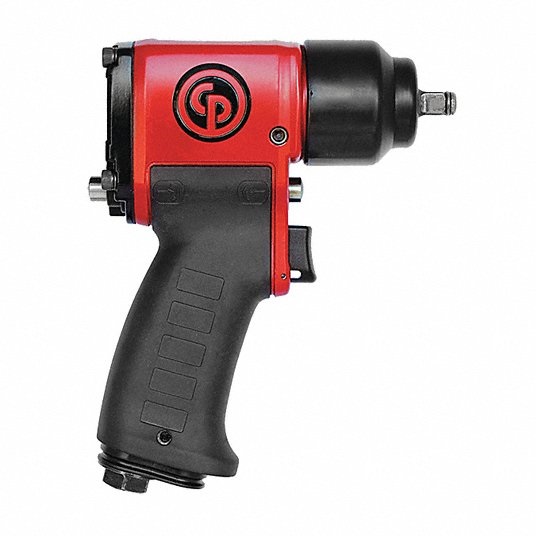

Air Powered, Impact Wrench, 90 psi, 190 ft-lb Fastening Torque 11C921

CHICAGO PNEUMATIC

Best Performance. Range of Products. Best Quality

offers a complete range of industrial air tools. High quality, reliable, industry-leading pneumatic power tools in Middle East.

Brands: Impact Wrench, Torque Wrench, Grinders.

These pistol-grip air-powered impact wrenches have a square drive and a standard anvil length.
– They are full-size impact wrenches with high torque output.
– The pistol grip has a trigger that is pressed to activate the wrench.
– Pistol grips provide ergonomic handling when working on vertical surfaces from the user’s waist to chest, horizontal surfaces at mid-thigh or lower, and horizontal surfaces directly overhead.

Air Consumption / 15 cfm
Air Inlet / 1/4 in NPT
Air Pressure / 90 psi
Max. Air Pressure / 90 psi
Min. Air Pressure / 90 psi
Min. Hose Size / 3/8 in
Exhaust Location / Bottom
Duty Rating / General Duty
Breakaway Torque / 200 ft-lb
Fastening Torque / 190 ft-lb
Free Speed / 9,600 RPM
Impact Rated / Yes
Impact Sound Level / 102 dB
Impacts per Minute / 1,680
Number of Speed Settings / 3
Power to Weight Ratio / 64.5 ft-lb/lb
Max. Bolt Capacity / 1/2 in
Drive Size / 3/8 in Square
Drive Type / Standard
Retainer Type / Friction Ring
Clutch Style / Pin Clutch
Tool Style / Compact
Vibration Level / 4.4 m/sq sec
Overall Length / 5 3/4 in
Handle Material / Aluminum
Housing Material / Aluminum
Handle Type / Pistol Grip
Features / 360 Degrees Swivel Air Inlet, Curved Handle With Thermo-Plastic Rubber Injected In Housing For A Durable And Comfortable Grip, Resistant To Most Chemicals Used In Workshops, Single Handed Push Button Forward and Reverse, Teasing Trigger
Tool Weight / 3.1 lb
Standards / EN ISO 11148-6:2013, ISO-28927-2
