ARC / Pulse TIG Welding Machine, 300 Amp, 208V ~ 528V in 3-phase , 230V in single phase, 50/60 Hz, 8.4kg

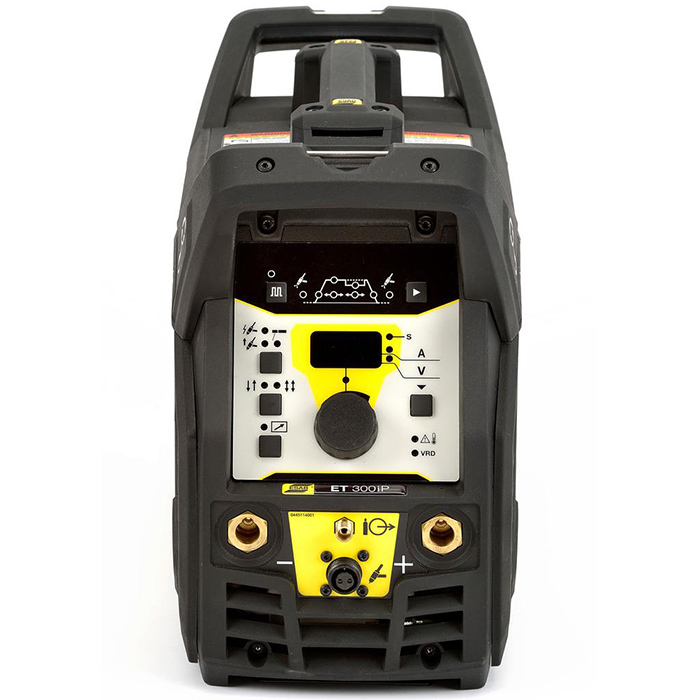

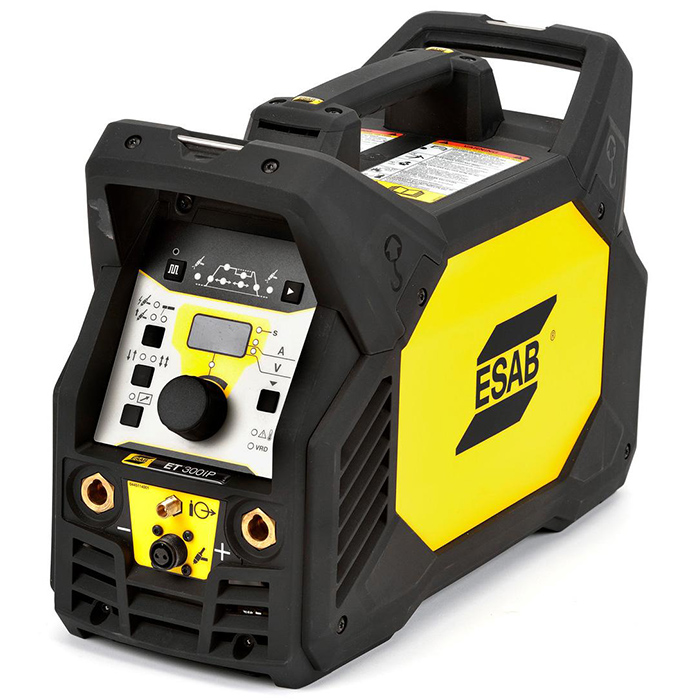

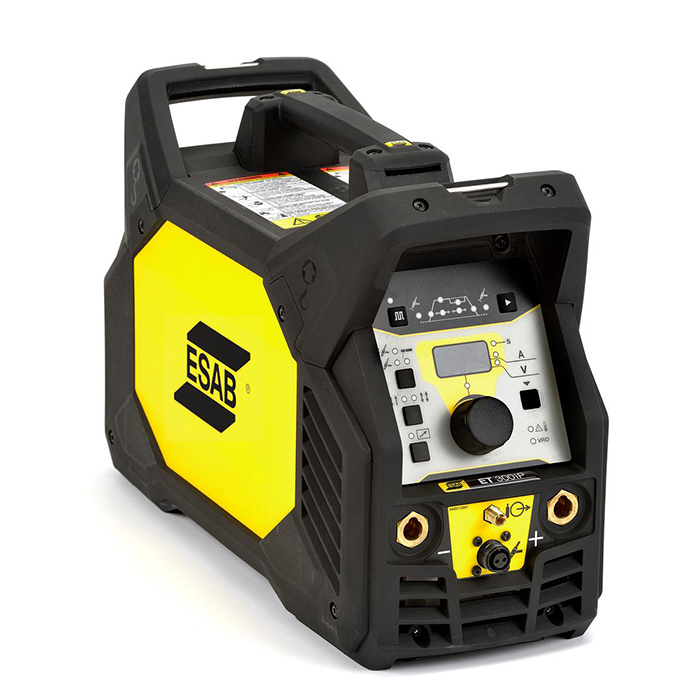

Esab RENEGADE ET300iP
Welders are always on the go, so their machines need to be too. They need to go fast and far. They need a machine that can keep up. That machine is the ESAB Renegade ET 300ip. The most portable machine with the highest power-to-weight ratio that’s always ready for the next move
ET 300ip runs Stick and TIG and has the widest input power range on the market, making it capable of handling both single and three-phase, and puts out 5-300 amps @ 40% duty cycle.
The Renegade TIG are inverter-based High-frequency TIG (HF) and MMA/Stick machines with extreme power-to-weight ratio. The compact format makes it easy to carry and bring to any job site. Combined with a high-duty cycle and the ability to run the machine on long mains and welding cable makes this a superior welding machine for both on and off-site applications. The machine has an automatic input voltage sensor and can operate with any input voltage between 208V and 528V in 3-phase and 230V in a single phase.
Features

The extreme power-to-weight ratio in a most compact format.
Rugged composite casing for durability in the roughest environments.
They are designed for extreme conditions including up to +55°C ambient temperature.
Widest input voltage tolerance and ability to run on single and three phases with cables up to 100 meters.
Easy to read and quick to set panel increasing the accuracy and reducing the downtime.
Available as non-pulsed and as pulsed for thin sheet metal applications.
Modular system with tool-less connection to water cooler and trolley

Industry

Ship and Offshore Yards
Civil Construction
Pipe Construction
Repair and Maintenance
Heavy Fabrication
Industrial and General Fabrication
Mining
Steel Erectors

Primary Voltage 1 ph / 230 VAC +/- 10%, 50/60 Hz
Primary Voltage 3 ph / 230-480 VAC +/- 10%, 50/60 Hz
Fuse Slow / 16 A at 400 V
Energy Save Mode / 88 W at 400 V
Maximum Output / 300 A
Power Factor at Max Current / 0.96
Efficiency at Max Current TIG/MMA / 88 % / 84 %
Open Circuit Voltage with/without VRD / 33 V / 48 V
TIG Welding Output / 40% Duty Cycle / 300 A / 22.0 V
TIG Welding Output / 60% Duty Cycle / 250 A / 20.0 V
TIG Welding Output / 100% Duty Cycle / 200 A / 18.0 V
MMA Welding Output / 40% Duty Cycle / 300 A / 32.0 V
MMA Welding Output / 60% Duty Cycle / 250 A / 30.0 V
MMA Welding Output / 100% Duty Cycle / 200 A / 28.0 V
Current Range / 5 – 300 A (TIG and MMA)
Approvals / CE
Protection Class / IP23
Mains Cable / 3 m, 4×2,5 mm2 (4×4 mm2 with 230 V)
Supply Plug CEE / 16 A
Dimensions, Lx W x H / 460 x 200 x 320 mm
Weight without/with Cooler / 16.9 kg/26.9 kg
