Centrifugal Water Pump, 0.8HP, 60Hz, Dual Voltage 240-220V, Head 27m, Inlet x Outlet 1 x 1 inch, 11.3kg
349,60 ر.س

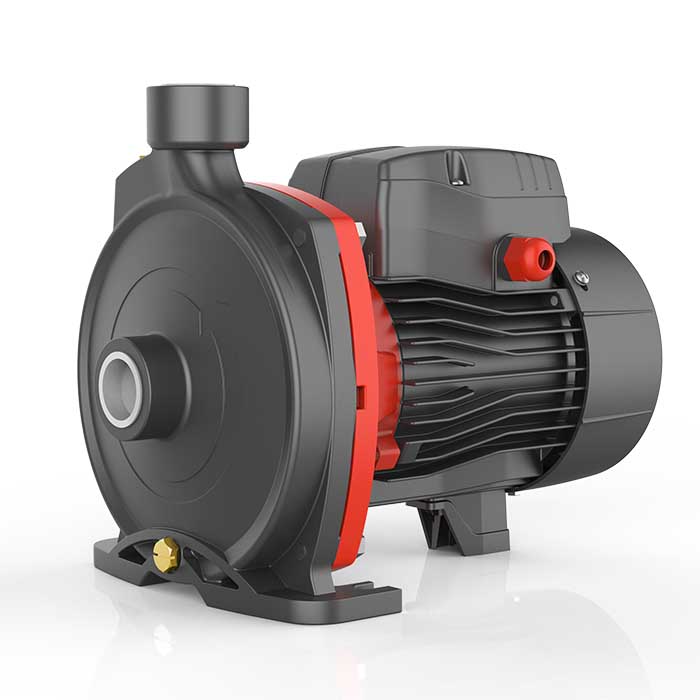

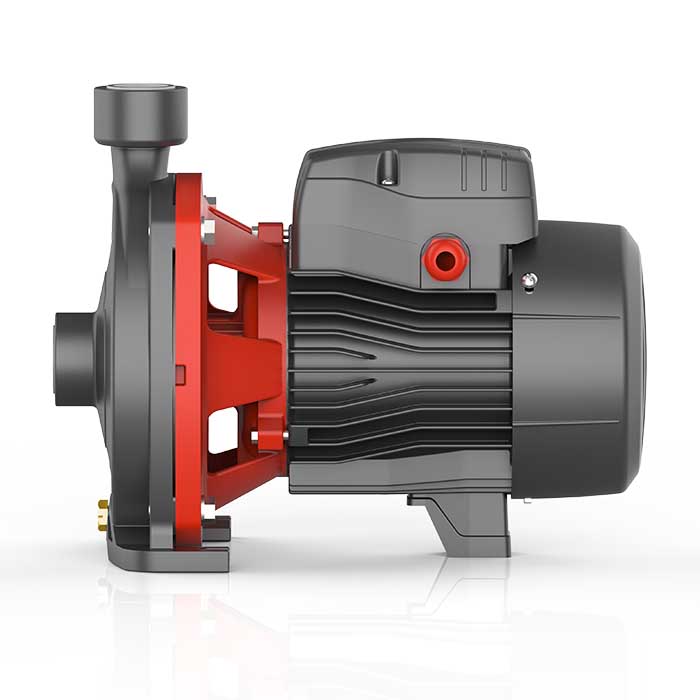

Leo Centrifugal Water Pump ACM60-PB
The Leo ACM60-PB Centrifugal Water Pump offers robust performance and energy-efficient water transfer in various settings. Designed for clean water and similar non-corrosive liquids, this high-capacity pump runs on dual voltage (220-240V), delivering a strong 0.8HP motor power and a maximum head of 27 meters. Its corrosion-resistant cast iron body, AISI 304 shaft, and low-noise bearings ensure durability and smooth operation. Ideal for residential and commercial applications — including irrigation, firefighting, and HVAC — this centrifugal water pump is equipped with an IE2-rated motor and built-in thermal protection for long-lasting safety and reliability.
Leo Centrifugal Water Pump Features
0.8 HP motor, dual voltage (220–240V), 60Hz operation
Head height up to 27 meters, 1″ inlet × 1″ outlet
Designed for clean water and non-corrosive liquids
Cast iron pump body with anti-rust coating
Stainless steel AISI 304 shaft and impeller (Brass or AISI 304)
Mechanical seal: Carbon/Ceramic for secure sealing
Maximum liquid temperature: 60°C
Suction capacity up to 8 meters
Built-in thermal protector for single-phase motors
Quiet operation with long-lasting bearings
Motor with high-quality copper winding
Insulation class: F for improved motor safety
Enclosure class: IPX4 for dust and water protection
Maximum ambient temperature: 50°C
Energy-efficient IE2 motor (Three-phase, 0.75kW)
Unit weight: 11.3 kg
Application Fields
Water supply for homes and commercial buildings
Pressure boosting in tall structures
Firefighting system installations
Garden irrigation and long-distance water transfer
Circulation in HVAC (heating and cooling) systems
Reliable centrifugal water pump for diverse use cases
Durable cast iron and stainless steel construction
Efficient motor with built-in thermal safety
Ideal for irrigation & pressure boosting & HVAC circulation
Energy-saving IE2 motor with high head performance
Insulation class / F
Protection class / IPX4
Power / 0.5 KW , 0.8 HP
Voltage / 240V/ 220V , 60Hz
Max. ambient temperature / 50°C
Max. Head / 27m
Pipe Size / 1 inch X 1 inch
Pump Max. Liquid Temperature / +60° C
Pump Max. Suction / +8 m
