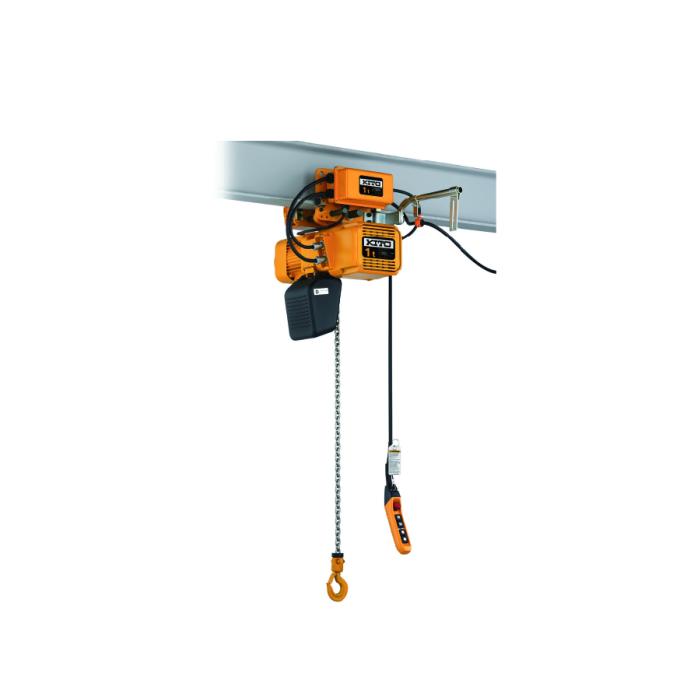

CHAIN HOIST 1 TON 4 WAYS 220 V , Made In Japan
9.829,05 ر.س
CHAIN HOIST, Single Lifting – Single Traversing Speed With Motorized Trolley, 220V
– Ten meters of power supply cable as standard accompanies
– Optional length of lift, push button cord and power supply cable besides standard is available on your request
– Extending the load chain is prohibited with additional links
– Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume
– Single Lifting – Dual Traversing is also available
Capacity(t) / 1
Hoist Body / D
Standard Lift (m) / 3
Push Button Cord L (m) / 2.5
Lifting Motor:
Output (kW) / 1.8
Rating (%ED) / 60
Lifting Speed (m/min) / 50Hz:7.1 / 60Hz: 8.5
Load Chain: Diameter (mm) x Chain Falls / 7.7. x 1
Classification ISO/FEM/ASME: M5/2m/H4
Traversing Motor:
Output (kW) / 0.4
Rating (%ED) / 40
Traversing Speed (m/min) / 50Hz: 20 (10) / 60Hz :24 (12)
Flange Width B (mm):
Standard / 58 to 153
Option W30 (305mm) / 154 to 305
Min.Radius Curve (mm) / 800
Test Load (t) / 1.25
Net Weight (kg) / 84
Additional Weight per 1m Lift (kg) / 1.33
