CHAIN HOIST 10TON 4 WAYS 220 V, Made In Japan
60.707,35 ر.س

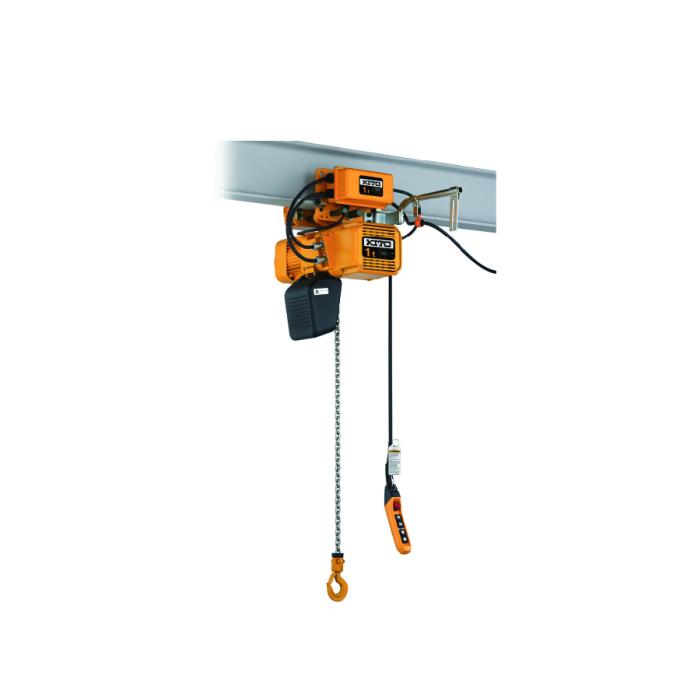

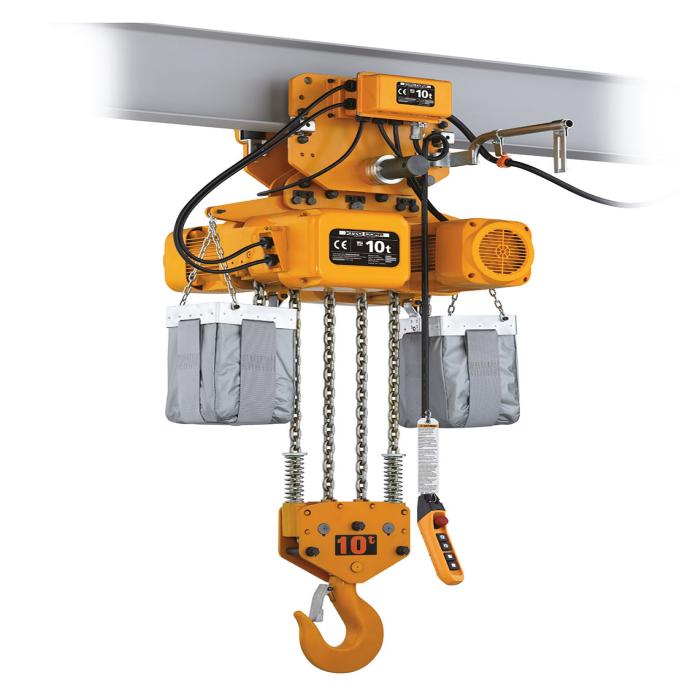

CHAIN HOIST from KITO, TROLLY, with Large Capacity, Motorized Trolley 10 TON, 3 PH, 220V
– Ten meters of power supply cable as standard accompanies
– Optional length of lift, push button cord and power supply cable besides standard is available on your request
– Extending the load chain is prohibited with additional links
– Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume
Capacity(t) / 10
Hoist Body / F
Standard Lift (m) / 3
Push Button Cord L (m) / 3.3
Lifting Motor:
Output (kW) / 3.5×2
Rating (%ED) / 60
Lifting Speed (m/min) / 50Hz: 2.9 / 60Hz: 3.5
Load Chain: Diameter (mm) x Chain Falls / 11.2 x 4
Classification ISO/FEM/ASME: M4/1Am/H4
Traversing Motor:
Output (kW) / 0.75
Rating (%ED) / 40
Traversing Speed (m/min) / 50Hz: 10 / 60Hz :24 12
Flange Width B (mm):
Standard / 150 to 220
Option W30 (305mm) / 221 to 305
Min.Radius Curve (mm) / 2500
Test Load (t) / 12.5
Net Weight (kg) / 399
Additional Weight per 1m Lift (kg) / 11
