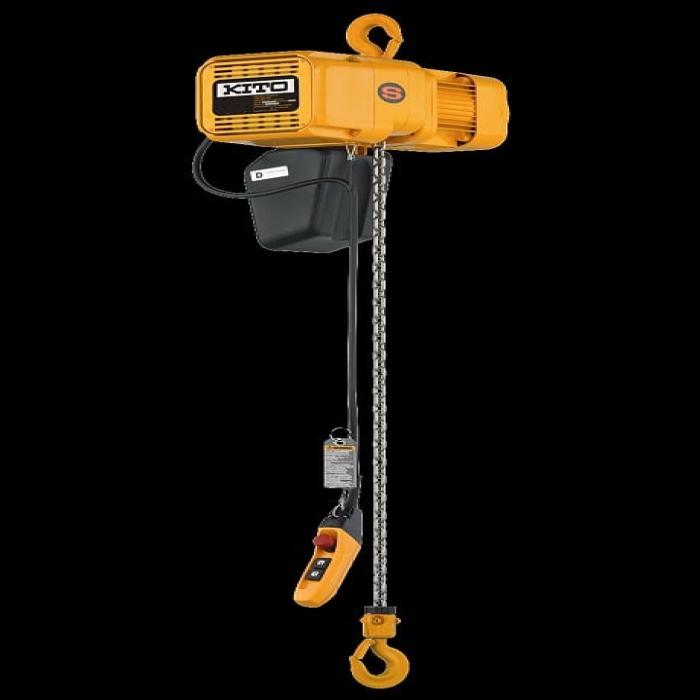

CHAIN HOIST 5 TON 2 WAYS 220 V, Made In Japan
19.675,35 ر.س
Features
CHAIN HOIST from KITO, 5 TON, 220V,3PH
Five meters of power supply cable as standard accompanies
Optional length of lift, push button cord and power supply cable besides standard is available on your request
Extending the load chain is prohibited with additional links
Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume
Capacity(t) / 5
Hoist Body / F
Standard Lift (m) / 3
Push Button Cord L (m) / 2.8
Lifting Motor / Output (kW) / 3.5
Lifting Motor / Rating (%ED) / 60
Lifting Speed (m/min) / 50Hz: 2.9 / 60Hz: 3.5
Load Chain: Diameter (mm) x Chain Falls / 11.2 x 2
Classification ISO/FEM/ASME: M4/1Am/H4
Test Load (t) / 6.25
Net Weight (kg) / 132
Additional Weight per 1m Lift (kg) / 5.6
