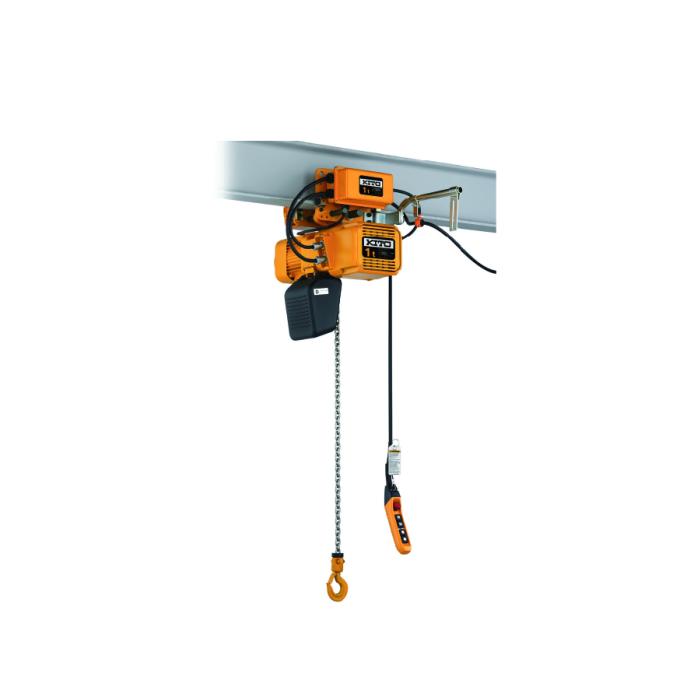

CHAIN HOIST 5TON 4 WAYS 220 V, Made In Japan
22.092,65 ر.س
CHAIN HOIST, Single Lifting – Single Traversing Speed With Motorized Trolley,220V
– Ten meters of power supply cable as standard accompanies
– Optional length of lift, push button cord and power supply cable besides standard is available on your request
– Extending the load chain is prohibited with additional links
– Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume
– Single Lifting – Dual Traversing is also available
Capacity(t) / 5
Hoist Body / E
Standard Lift (m) / 3
Push Button Cord L (m) / 2.8
Lifting Motor:
Output (kW) / 3.5
Rating (%ED) / 60
Lifting Speed (m/min) / 50Hz: 2.9 / 60Hz: 3.5
Load Chain: Diameter (mm) x Chain Falls / 11.2 x 2
Classification ISO/FEM/ASME: M4/1Am/H4
Traversing Motor:
Output (kW) / 0.75
Rating (%ED) / 40
Traversing Speed (m/min) / 50Hz: 20 (10) / 60Hz :24 (12)
Flange Width B (mm):
Standard / 100 to 178
Option W30 (305mm) / 179 to 305
Min.Radius Curve (mm) / 1800
Test Load (t) / 6.25
Net Weight (kg) / 202
Additional Weight per 1m Lift (kg) / 5.6
