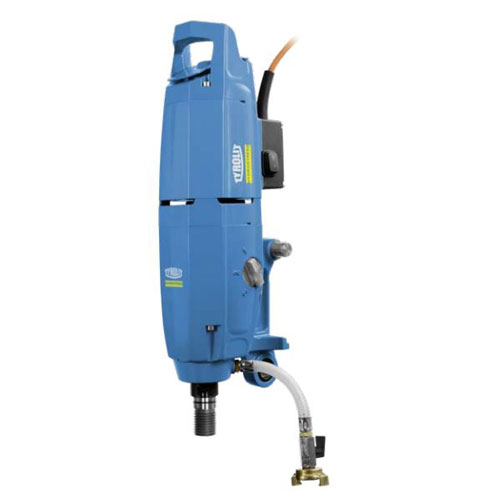

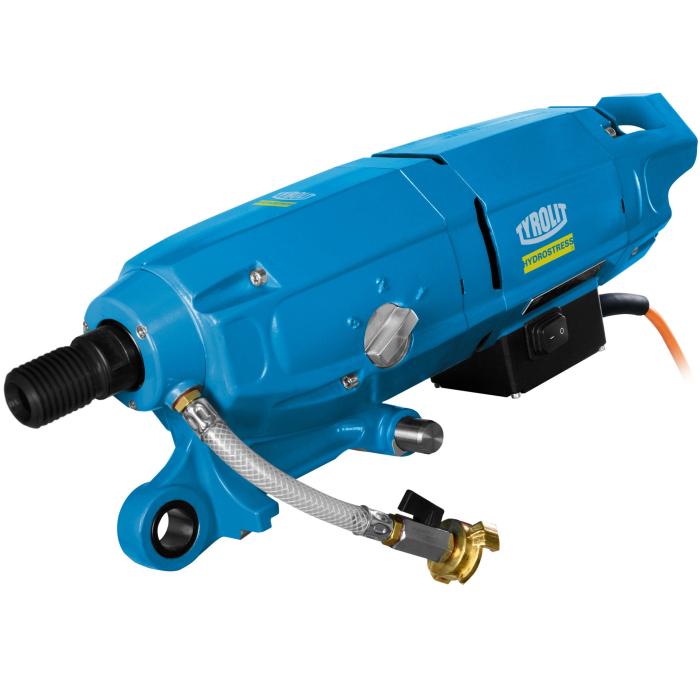

CORE DRILL MOTOR DME33MW/DME33UW,Core drilling up to 450mm

Features

TYROLIT , one of the world’s leading manufacturing of bonded grinding , cutting , sawing , drilling and dressing tools and system supplier of tools and construction industry.
Thanks to optimum torque adjustment, the DME33 is an extremely powerful drill motor providing impressive productivity.
The mechanical and electronic overload cut-out and the full metal housing ensure high reliability.
Built-in performance and service indicators, as well as the levelling aid, also enable easy operation.
The drill motor is available with different drill rig attachments (ModulDrill™ quick clamping system or universal plate).
Large drilling diameter range up to 450 mm.
Performance and service indicator as well as leveling aid.
Practical carrying handle.

Voltage / Frequency 230 V / 50-60 Hz
Type no / 10992085 – 10992086- 10992087- 10992088
Drill diameter range / 50–450 mm
Nominal power / 3.3 kW
Nominal current / 15.9
Load speed 180 / 430 / 750 rpm
No load speed 360 / 820 / 1 240 rpm
Motor cooling / Air
Tool attachment (external) / 1 1⁄4″
Operation / Rig-based
Application / Wet
Drill rig attachment / ModulDrillTM
Length / 575 mm
Width / 145 mm
Height / 185 mm
