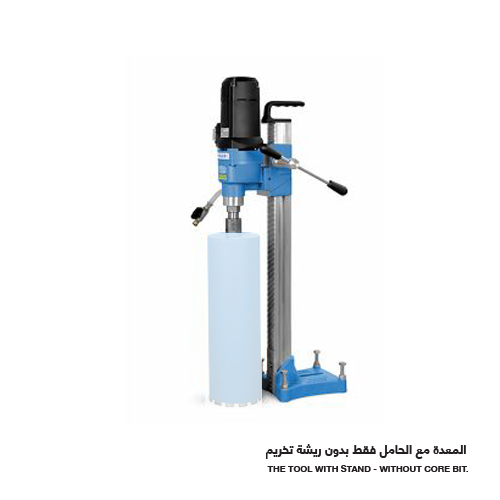

Core drilling system DRS162, Core drilling up to Ø 162 mm

TYROLIT , one of the world’s leading manufacturing of bonded grinding , cutting , sawing , drilling and dressing tools and system supplier of tools and construction industry.

The DRS162 drill system is the ideal core drill entry model. The drill motor and drill rig complement each other
perfectly and form a single unit. The preset speed and compact, lightweight construction guarantee easy
handling and user-friendliness. An integrated PRCD safety switch ensures maximum safety. Optional vacuum
plate offers more flexibility in fixing the system.

Core drilling system
– Powerful 2.5 kW Motor
– One speed for drilling diame- ters up to 162 mm
– Space-saving attachment facility via dowel foot

Drill rig (integrated):
Bore hole diameter / 40–162 mm
Max. drill bit length / 556 mm
Drill rig (integrated):
Drill diameter range in concrete ca. / 40–162 mm
Nominal power / 2.5 kW
Nominal current / 11.5 A
Nom. voltage / frequency standard / 230 V / 50 Hz
Load speed / 450 rpm
Cooling / Air cooling
Tool attachment external thread / 1 1⁄4″
Tool attachment internal thread / 1⁄2″
Operation / Drill rig operation
Application / Wet
Electronic overload cut-out
Mechanical overload cut-out
PRCD protection switch
Design:
– Aluminium dowel foot
– Feed using hand crank
– Adjustable feet (M12)
– 1 handle
– Motor fi xed integrated
Dimensions & Weight:
Length / 365 mm
Width / 185 mm
Height / 855 mm
Weight (drilling system) / 15.5 kg
