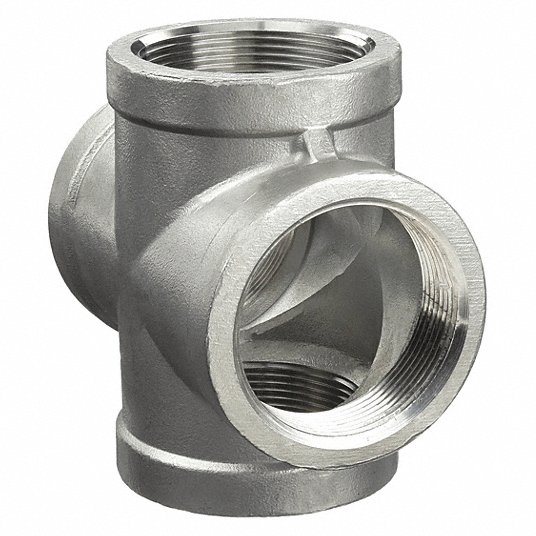

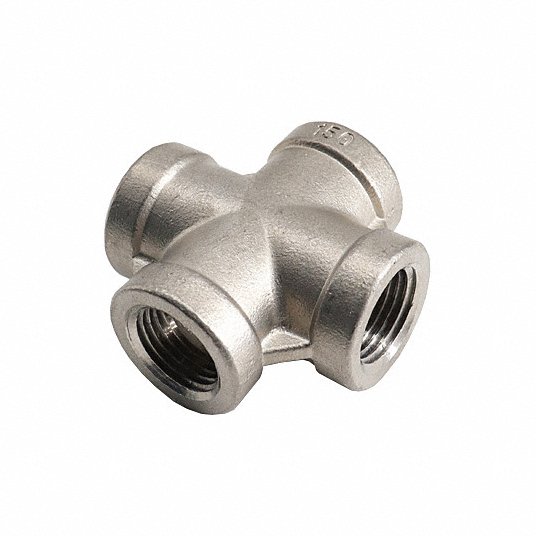

Cross: 316 Stainless Steel, 3/4 in x 3/4 in x 3/4 in x 3/4 in Fitting Pipe Size, Class 150

Features

This GRAINGER APPROVED cross fitting is designed with 316 stainless steel featuring a higher nickel content for better corrosion resistance.
Compatible with stainless steel Schedule 40 pipe
For use with air, water, oil, natural gas, and steam

Pipe Fitting Material / 316 Stainless Steel, Stainless Steel
Material Grade / 316
Class / Class 150
For Pipe Schedule / 40
Fitting Side A Nominal Pipe Size / 3/4 in
Fitting Side A Gender / Female
Fitting Side A Type / NPT
Fitting Side A Outside Diameter / 3/4 in
Fitting Side A Pipe Threading / 14
Fitting Side B Nominal Pipe Size / 3/4 in
Fitting Side B Gender / Female
Fitting Side B Type / NPT
Fitting Side B Outside Diameter / 3/4 in
Fitting Side B Pipe Threading / 14
Fitting Side C Nominal Pipe Size / 3/4 in
Fitting Side C Gender / Female
Fitting Side C Type / NPT
Fitting Side C Outside Diameter / 3/4 in
Fitting Side D Nominal Pipe Size / 3/4 in
Fitting Side D Gender / Female
Fitting Side D Type / NPT
Fitting Side D Outside Diameter / 3/4 in
Maximum Operating Pressure / 300 psi
Max. Steam Pressure / 150 psi
Includes Pre-Applied Thread Sealant / No
Includes Seal / No
Overall Length / 65 mm
Color / Silver
Application / Air, Natural Gas, Non-Potable Water, Oil, Potable Water, Steam
Standards / ASME B1.20.1, ASTM A351, MSS SP-114
