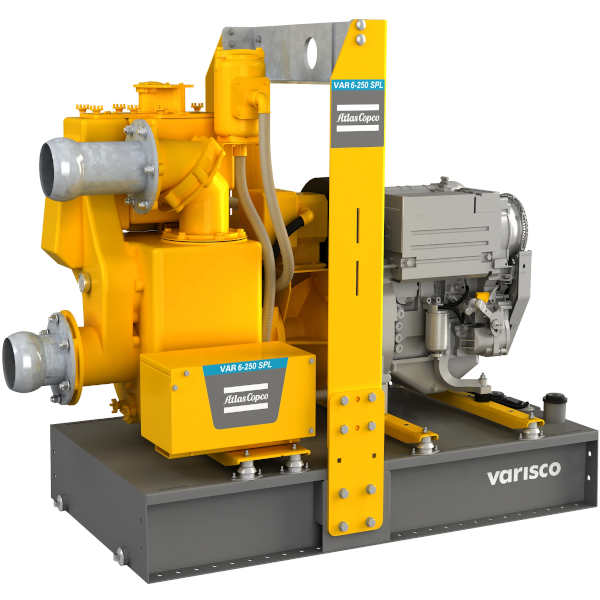

Dewatering Pump with vacuum pump, Max. flow 340 m3/hour & Max. head 27 m with Diesel Engine

The system consists of a self-priming centrifugal pump and a Simplex separator which enables air to be separated from the liquid and be sucked by a vacuum pump – making automatic priming possible. Even with suction heights of several meters the machine
rapidly evacuates the air from the suction pipe and starts to pump.
– The WEL ECO is capable of drawing significant quantities of air and maintaining a wellpoint system under vacuum, or draining an excavation, thanks to the semi-open impeller which also makes it suitable for pumping liquids with solids in suspension.

– Rapid “dry” priming Up to a height of 8.5 m (27.5 ft)
– High resistance To abrasive liquids and turbid sandy waters
– Semi-open impeller Solids handling up to 76 mm (3″)
– Rotary vane vacuum pump Lubricated with oil recovery system and coalescing
filters: no contamination of the environment
– Wear plates Cast iron (G11 rubber lined) or stainless steel wear plates, that are easily replaceable

Qmax / 340 m3/h – 5.670 l/min (1,500 USgpm)
Hmax / 27,5 m (90 ft)
Q max eff. / 240 m3/h – 4.000 l/min (1,100 USgpm)
Eff. max / 62 %
Suction port / Flanged – DN 150 D.I. 1882 (6″)
Delivery port / Flanged – DN 150 D.I. 1882 (6″)
Impeller type / Semi-Open, 2 vane
Solids handling / 76 mm (3.0 “)

Material / S275JR EN 10025-2 carbon steel
Coatings / Epoxy powder, average thickness of 80 μm
Color / Yellow and grey Atlas Copco (standard)
Features / Modular and demountable framework; hot dip galvanised steel support bases, bullbars and lifting beam. Mudguards with galvanised steel walkable surface. Tow bar, adjustable support feet. Lockable battery box. Fuel level indicator.
Battery / Acid charge Pb-Ca maintenance free
12 V – 100 Ah – 400 A
Tank / 300 l (79.3 USG)
Locking keys / Fuel cap

Dimensions / 1410 x 2330 x 1880 mm
56 x 92 x 74 ”
H suction port / 1,17 m (3.8 ft)
Weight (KL10) / 1120 kg (2,470 lb)
Weight (ZD35) / 1130 kg (2,490 lb)
