Shuttering Plywood

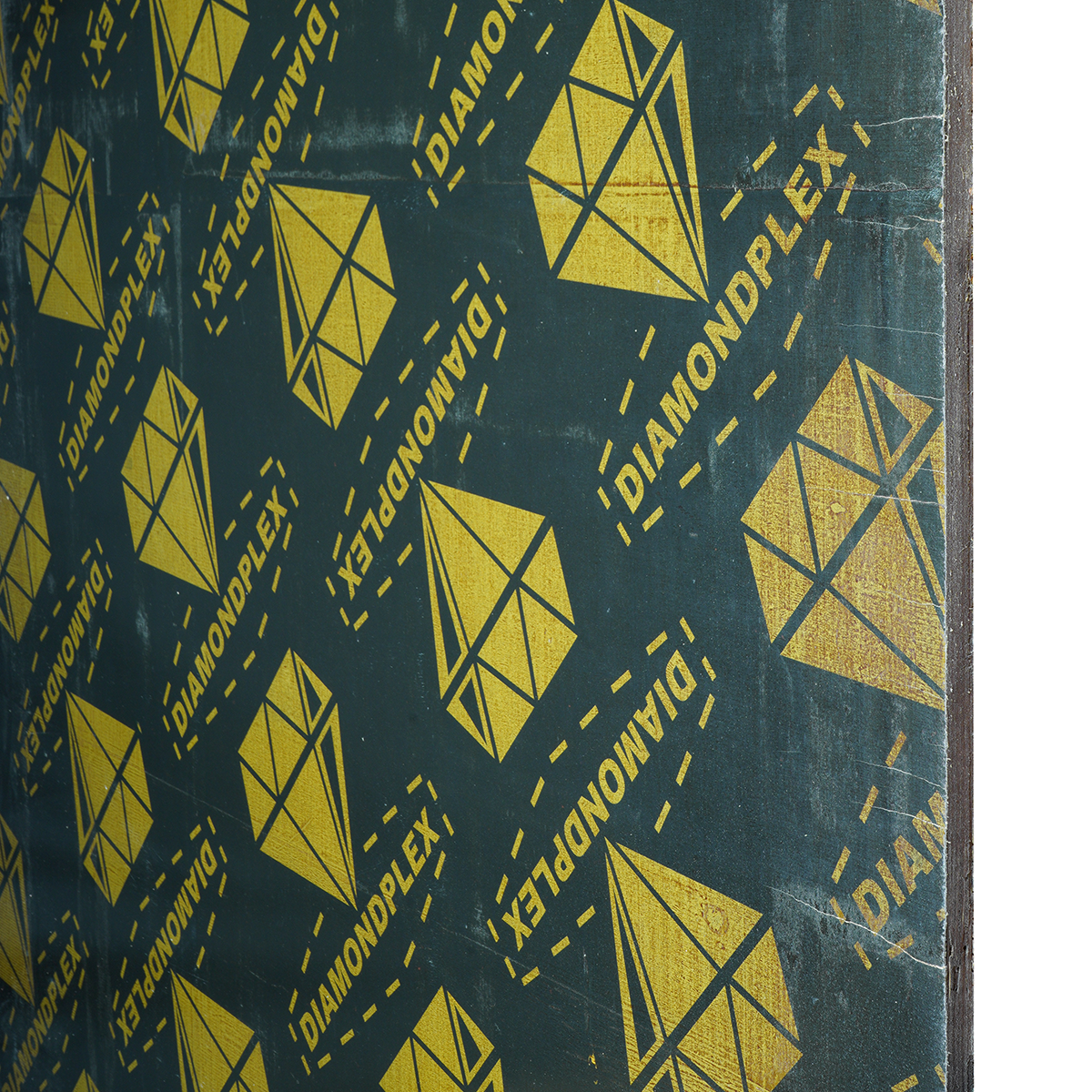

Diamondplex Shuttering Plywood – 18mm Black Film Faced
Diamondplex is a high-performance shuttering plywood with a black film face and finger joint core. It’s engineered for strength, stability, and efficient concrete formwork.
Manufactured with MR glue and bonded under high pressure, Diamondplex delivers consistent moisture resistance and excellent dimensional strength. It’s ideal for single to limited-use shuttering in slabs, beams, and columns.
Specifications
- Size: 1220 x 2440mm
- Thickness: 18mm
- Core: Finger joint core
- Film: Black film faced
- Glue: MR bonding
- Density: 505 kg/m³
- Longitudinal Bending Strength: 53.5 MPa
- Lateral Bending Strength: 36.9 MPa
- MOE (Elasticity): 5850 MPa (long), 4945 MPa (lateral)
- Bonding Strength: 0.83 – 1.64 MPa
Applications
- Concrete shuttering and formwork
- Slab and beam casting
- Wall and column molds
- General-purpose construction formwork
Diamondplex is the economical choice for high-quality concrete shuttering — delivering strength, smooth release, and reliable bonding with every pour.
“Consistent quality and dependable performance – Diamondplex excels in shuttering precision.”
