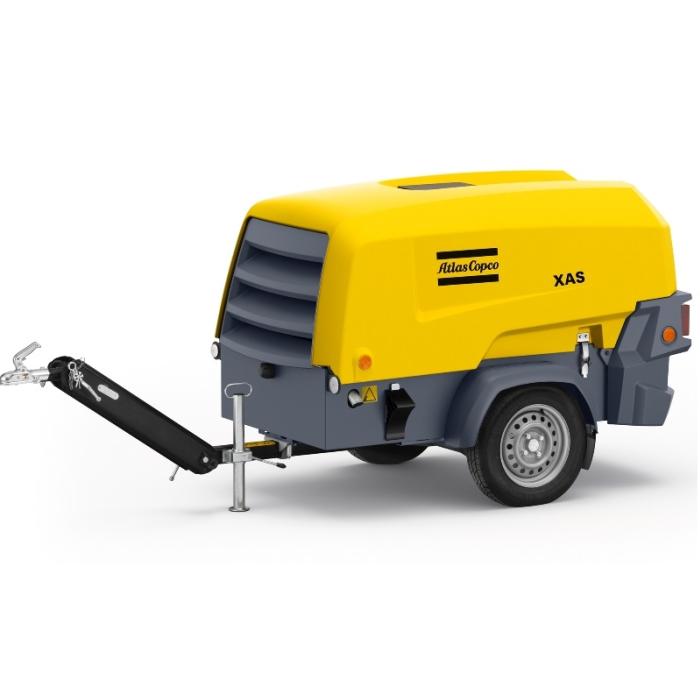

Diesel Portable Compressor 7 bar, 135 CFM

Atlas Copco’s fully implemented Quality Management and Environmental Management systems in the design and manufacturing of these units fulfill the requirements of ISO 9001 and ISO 14001 & OHSAS 18001.

The range has also been given the certificate tested according to ISO 1217:2009-annex D.

OPTIONS

– Adjustable tow bar with brakes
– Adjustable tow bar without brakes
– Fixed tow bar with brakes
– Fixed tow bar without brakes
– DoT approved undercarriage
– Support mounted
– Support leg
– Jockey wheel
– Road signalization + wheel chocks
– Towing eye (DIN, NATO, AC, BNA, ITA ,GB , Ball coupling)
– Loose ball coupling
– Special colors
– Cold start
– Toolbox
– Aftercooler + water separator
– Aftercooler + water separator + heater
– Aftercooler by-pass
– Additional fuel filter
– Safety cartridge
– Lubricator
– Non-return valve
– Tilt protection
– Air filter vacuum system
– Hose reel
– 4th O/L valve (simple attachment)

Performance :
Working pressure bar (g) / 7
psi (g) / 100
Free air delivery CFM / 135
m3 /min / 3,5
Output power kVA / –
Noise sound pressure level (Lp) / 70
Noise sound power level (Lw) / 98
Max. ambient temperature at sea level °C / 50
Min. starting temperature °C / -10
Min. starting temperature (cold start aid) / -20

Engine:
Engine brand / Kubota
Engine model / V 1505 T
Number of cylinders / 4
Power output @ normal shaft speed kW / 26,5
Full load RPM rpm / 3000
Unload RPM rpm / 1850
Engine oil capacity l / 5,5
Compressor oil capacity l / 7,7
Fuel tank capacity / 60

Length mm / 1940
Width mm / 1180
Height mm / 1150
Weight box / 650

Transport dimensions
Length mm / 2290
Width mm / 1350
Height mm / 1400
Weight portable kg / < 750
