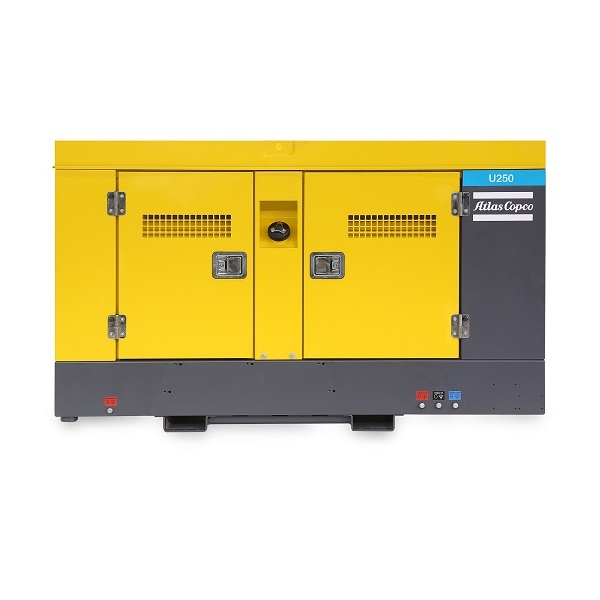

Diesel Portable Compressor 7 bar, 250 CFM

– 10% lighter and 3-layer stackable
– PACE
– 3 layers Zincor, Primer and Powder coating
– Low noise emissions
– Single side service
– 1500 hours service interval
– Generator option

Benefits
– Save transport and storage cost
– You control the pressure and flow
– Optimal protection against corrosion
– Protecting the environment
– Change of consumable in 1 hour
– Increase uptime, lower cost to owner
– Air and power combined in one machine

Normal effective working pressure bar / 7
Absolute inlet pressure bar / 1
Relative air humidity % / 0
Air inlet temperature °C / 20
Minimum effective receiver pressure bar / 5
Maximum effective receiver pressure (Unloaded) bar / 8.3
Actual free air delivery m3/min / 7.1
Fuel consumption
at 100% FAD (full load) kg/h / 10.93
at 75% FAD kg/h / 7.81
at 50% FAD kg/h / 6.38
at 25% FAD kg/h / 5.02
Specific fuel consumption at 100% FAD g/m3 / 26.734
Maximum typical oil content of compressed air mg/m3 / 5
Max. sound pressure level (Lw @ 2000/14/EC) dB(A) / – – –
Max. sound pressure level (Lp @ ISO 2151) dB(A) / – – –
Compressed air temperature at outlet valve without AC °C / 90
Max. ambient temperature at sea level without aftercooler °C / 50
Min. starting temperature with cold weather equipment °C / -20
Min. starting temperature without cold weather equipment °C / -10
Number of compression stages / 1
Engine / Kubota
Type / V2403T
Coolant / Liquid (glycol 50%)
Number of cylinders / 4
Bore mm / 87
Stroke mm / 102.4
Swept volume / l 2.4
Engine power at normal shaft speed @ SAE J 1995 kW / 47.9
Full load RPM rpm / 2700
Unload RPM rpm / 1600
Capacity of oil sump l / 9.5
Capacity of compressor oil system l / 11
Net capacity of air receiver l / 30
Air volume at inlet grating (approx.) m3 s / 2.7
Capacity of standard fuel tanks l / 100
Optional extended fuel tank l / 30
Weight – Box* kg / 1200
Weight – Box + Undercarriage* / kg 1400
* Refer to data plate for exact value
