Digital HVAC & Refrigeration Gauge , 2 Valves, Multiple Refrigerants

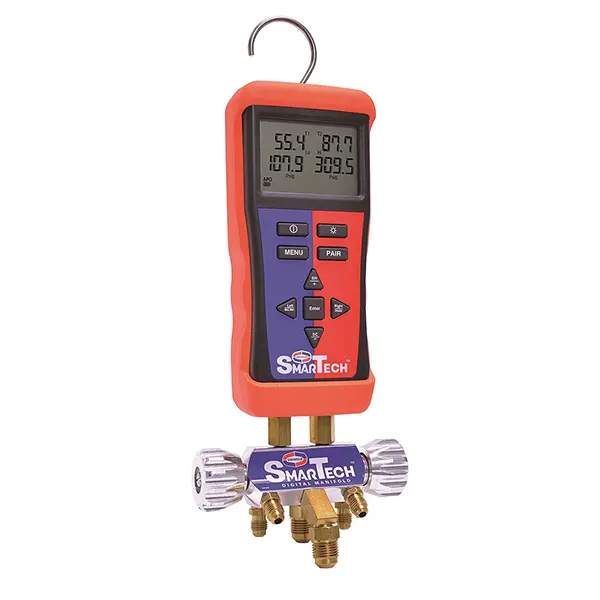

Digital Manifold Gauge USMAN5
The SmarTech™ Wireless Digital Manifold combines the technology of your Android or iOS device with the superior craftsmanship of Uniweld manufacturing. This Digital Manifold is also equipped with highly precise sensors that output professionally accurate pressure and temperature readings.
SmarTech™ App
Work smarter with the free downloadable SmarTech™ app to communicate with the SmarTech™ Digital Manifold via Bluetooth. The app, with 109 refrigerant profiles, clearly displays the system readings and allows for real-time monitoring of Superheat, Subcooling, and Delta T calculations that are done automatically. The difference between the actual and target Superheat or Subcooling is shown with color indicators that signal whether the system is overcharged (RED), undercharged (BLUE), or within tolerance (GREEN). This takes all the guesswork out of properly charging a system for maximum efficiency and optimal performance.
Digital Manifold Gauge Features:

Digital manifold gauges have clear, easy-to-read displays that show quick, accurate measurements when troubleshooting and inspecting A/C and refrigeration systems.

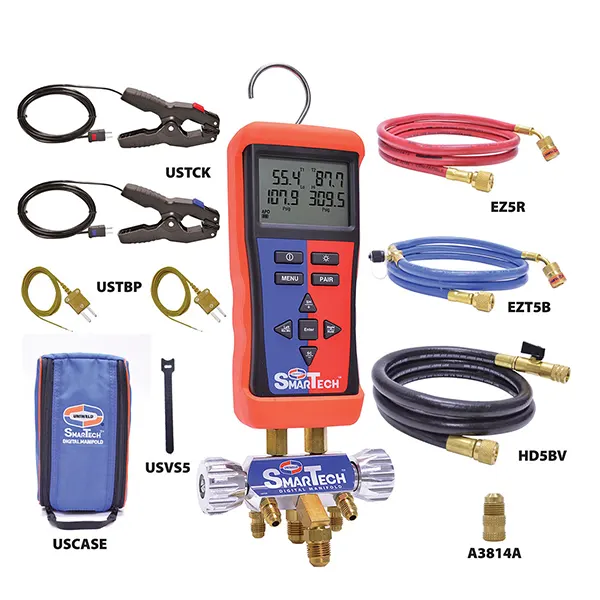

2-valve aluminum manifold with 3/8″ center port, easy grip handles, double O-ring piston valves, easy access front hose holders
5 ft. 3/8″ charging and vacuum hose with full flow ball valve shutoff, plus 3/8″ x 1/4″ tank adaptor: more than 3 times faster vacuum than standard 1/4″ hose
5 ft. red & blue hoses with EZ Turn™ Anti-Blowback fittings

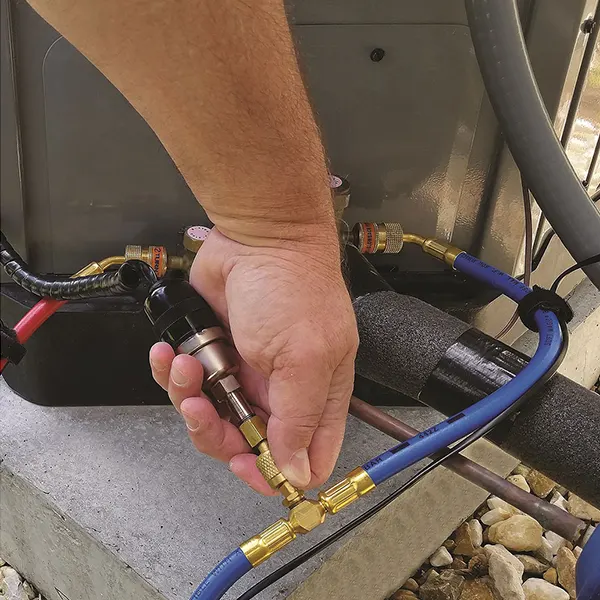

EZ Access “T” Fitting™ for micron gauge connection built into the blue low side hose (Patents Pending)
Red and blue K-Type temperature clamps with 6 ft. lead wire
2 K-type thermocouple bead probes
High-impact rubber boot and protective padded case with built-in storage compartments and front double zippers for quick and easy access

Digital display for precise and accurate pressure readings
Easy to use controls and intuitive display for quick operation
Compact and lightweight design for easy handling and transport
Easy Access Front Hose Holders
Measures high and low side pressure & temperature and superheat/subcooling

Number of Valves / 2
Refrigerant Compatibility / Multiple Refrigerants
Number of Hoses / 3
Hose Length / 60 inch
Vacuum Port Size / 3/8 inch
Material / Aluminum; Brass
Features / Bluetooth, Wireless
Includes / 5 ft Anti-Blowback Hoses; Ball Valve Hose; Bead Probe Thermocouples; Pipe Clamp Thermocouples; Tank Adaptor
