Drill Motor DME22SU** 2.2KW, Core drilling up to Ø 180 mm

TYROLIT , one of the world’s leading manufacturing of bonded grinding , cutting , sawing , drilling and dressing tools and system supplier of tools and construction industry.

Decades of experience in the production and application of core drill bits and core drill system give TYROLIT the edge in the marketplace

As results, TYROLIT product can be viewed as innovative solutions for large-scale projects while remaining cost-effective for everyday construction site use.

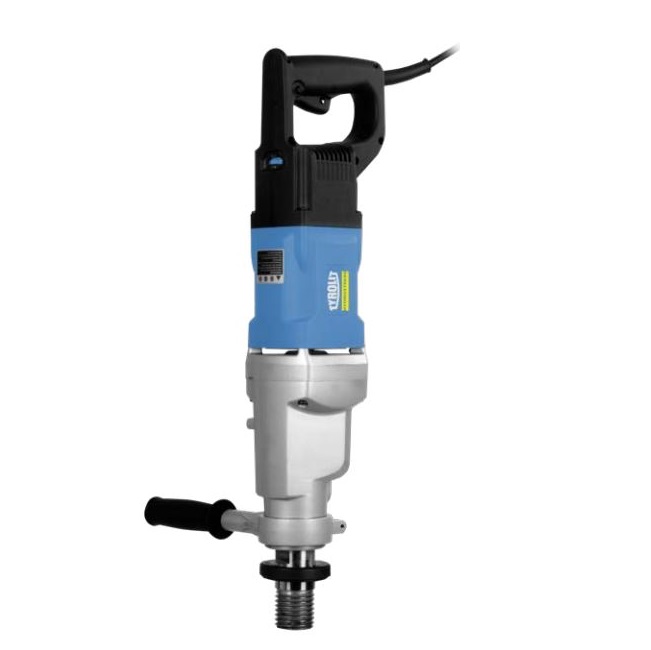

The DME22SU drill motor

The drill motor is ideal for electrical and installation work.
– It features a 3-speed transmission and variable speed setting with soft start.
– Integrated overload cut-outs and the PRCD safety switch ensure safe working.
– Dry drilling is also possible with the included M16 adapter.
-Comes in a handy transport case

Voltage / Frequency / 230 V / 50–60 Hz
Type no. / 10993027 – 10993028
Drill diameter range / 20–180 mm
Nominal power / 2.2 kW
Nominal current / 9.5 A 18 A
Load speed / 400/750/1 550 rpm
No load speed / 850/1 650/3 450 rpm
Motor cooling / Air
Tool attachment (external) / 1 1⁄4″
Tool attachment (internal) / 1⁄2″
Operation / Hand-held / rig-based
Application / Wet / dry
Drill rig attachment Clamping collar / 60 mm
Length / 552 mm
Width / 110 mm
Height / 150 mm
Weight / 6.0 kg
