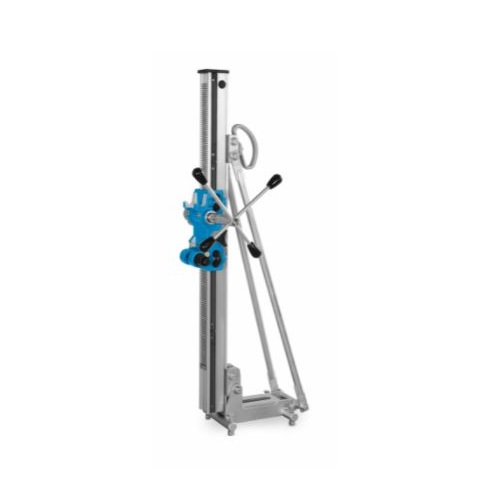

Drill Rigs, DRU250 , Core drilling up to Ø 250 mm

Features

TYROLIT , one of the world’s leading manufacturing of bonded grinding , cutting , sawing , drilling and dressing tools and system supplier of tools and construction industry.
The DRA250 | DRU250 drill rigs offer impressive stability and drilling performance thanks to sturdy workmanship and robust drilling columns with wide gear teeth.
The optimised support with sturdy roller guide guarantees precise drilling.
The proven ModulDrillTM quick clamping system enables fast and secure mounting of drill motors.
In addition, a center indicator (DRU250), angle indicator and two speed feed gear enhance user-friendliness and help save valuable working time.
The compact lightweight construction for easy transport, assembly and disassembly complete the system.

Design

Aluminium dowel-vacuum foot (DRU250)
Steel dowel foot (DRA250)
Two speed feed gearbox i=1:1 & i=1:3.5
Feed using hand crank
Diagonal adjustment 90°–45°
Centre indicator (DRU250)
Angle indicator
Spirit level
Adjustable feet (M12)
Adjustable and interchangeable roller guides
Handle 1 piece 2 pieces
ModulDrillTM quick change clamping system

Drill diameter range / 40–250 mm
Max. drill diameter with water colle-cting ring / 200 mm
Max. drill bit length / 582 mm
Length / 447 mm
Width / 250 mm
Height / 908 mm
Weight / 14 kg
