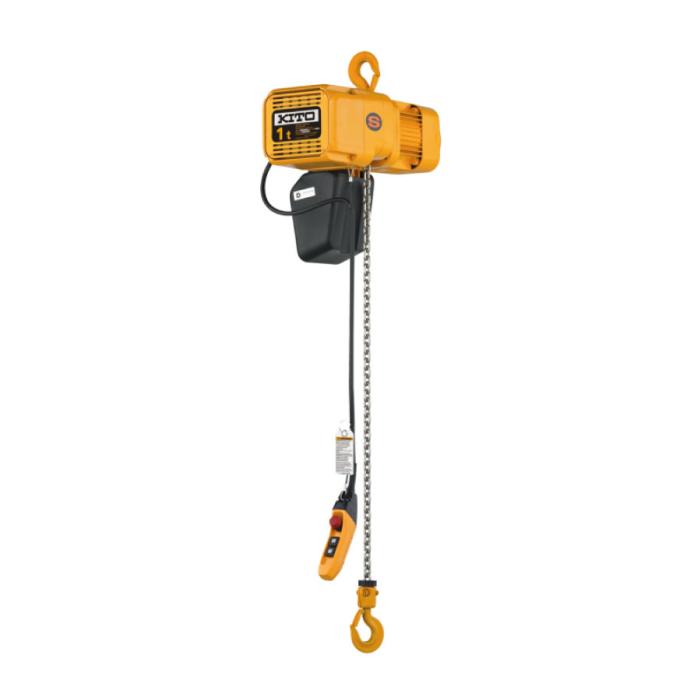

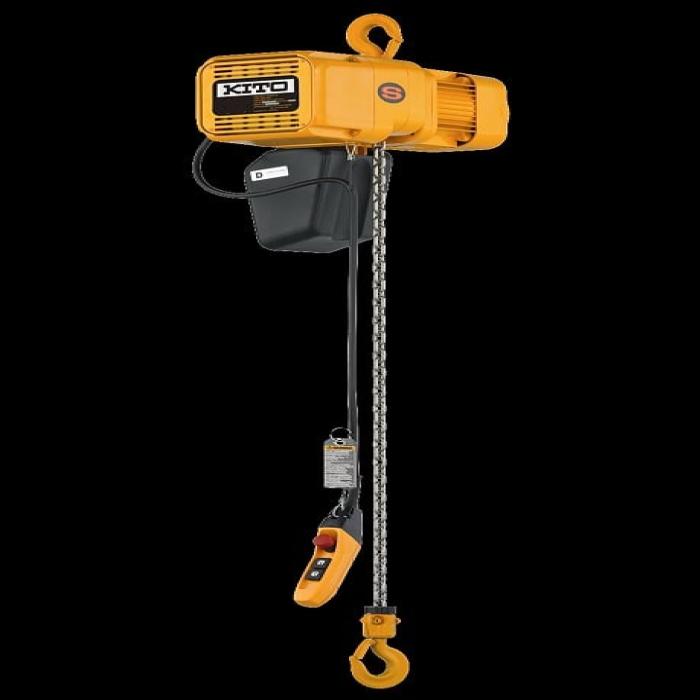

ELECTRIC CHAIN HOIST HOOK TYPE, 3 TON 2 WAYS 220 V , Made In Japan
14.339,35 ر.س
CHAIN HOIST, 3 TON, 220V,3PH
– Five meters of power supply cable as standard accompanies
– Optional length of lift, push button cord and power supply cable besides standard is available on your request
– Extending the load chain is prohibited with additional links
– Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume
Capacity(t) / 3
Hoist Body / E
Standard Lift (m) / 3
Push Button Cord L (m) / 2.8
Lifting Motor:
Output (kW) / 3.5
Rating (%ED) / 60
Lifting Speed (m/min) / 50Hz: 4.4 / 60Hz: 5.3
Load Chain: Diameter (mm) x Chain Falls / 10.2 x 2
Classification ISO/FEM/ASME: M4/1Am/H4
Test Load (t) / 3.75
Net Weight (kg) / 107
Additional Weight per 1m Lift (kg) / 4.7
