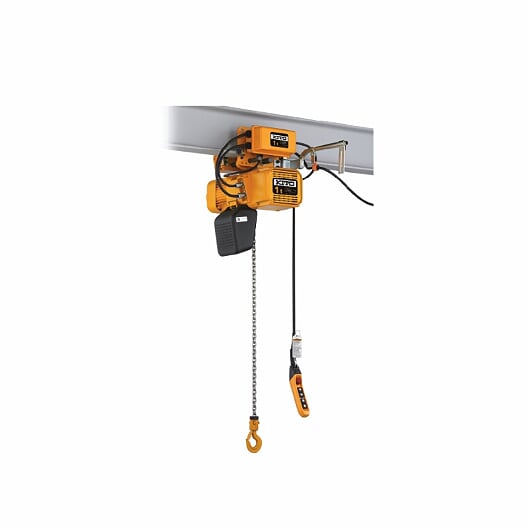

Electric Chain Hoist Motorized Trolley Type ,500Kg, 3Phase 380V,68 Kg, Made in Japan

Features

Ten meters of power supply cable as standard accompanies.
Optional length of lift, push button cord and power supply cable besides standard is available on your request.
Extending the load chain is prohibited with additional links.
Steel chain containers are available as option as shown in Section of “Chain Containers” if your lift is more than capacity of the standard container volume.
Single Lifting.
Dual Traversing is also available.

Smooth & Ergonomic Operation
Reliable Safety
Enhanced Durability
Environmentally Friendly
Easier Maintenance

Capacity(t) / 500kg
Hoist Body / C
Standard Lift (m) / 3
Push Button Cord L (m) / 2.5
Lifting Motor / Output (kW) / 0.9
Lifting Motor / Rating (%ED) / 60
Lifting Speed (m/min) / 50Hz:7.3 / 60Hz: 8.8
Load Chain: Diameter (mm) x Chain Falls / 6. x 1
Classification ISO/FEM/ASME: M5/2m/H4
Traversing Motor / Output (kW) / 0.4
Traversing Motor / Rating (%ED) / 40
Traversing Speed (m/min) / 50Hz: 20 (10) / 60Hz :24 (12)
Flange Width B (mm) / Standard / 58 to 153
Flange Width B (mm) / Option W30 (305mm) / 154 to 305
Min.Radius Curve (mm) / 800
Test Load (t) / 625kg
Net Weight (kg) / 68
Additional Weight per 1m Lift (kg) / 0.81
