ELECTRIC DRILL MOTORS, CORE DRILLING UP TO Ø 250mm

TYROLIT , one of the world’s leading manufacturing of bonded grinding , cutting , sawing , drilling and dressing tools and system supplier of tools and construction industry. Decades of experience in the production and application of core drill bits and core drill system give TYROLIT the edge in the marketplace As results, TYROLIT product can be viewed as innovative solutions for large-scale projects while remaining cost-effective for everyday construction site use.

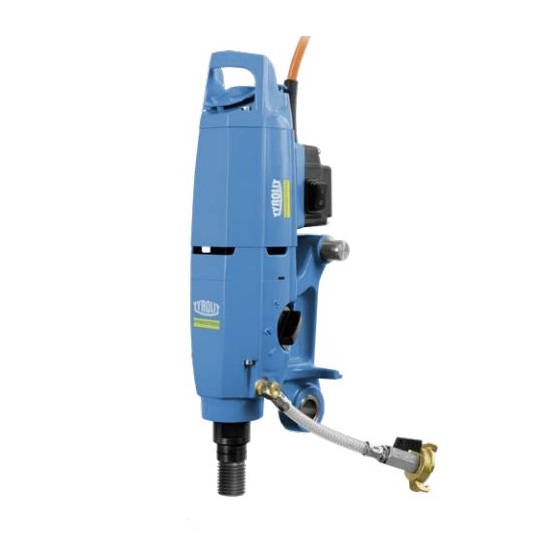

Drill motors DME24MW I DME24UW
Optimal handling thanks to very compact size and light weight – Efficient motor with very high drilling performance – Extremely robust due to full metal body and 3-gear oil bath gearbox – Reliability and endurance based on mechanical and electronic overload cut-out – Ease of use due to built-in performance and service indicators as well as leveling aid – Various drill rig attachments: ModulDrillTM-quick change clamping system or universal plate – Built-in performance and service indicators as well as leveling aid – Time saving drill rig attachment using ModulDrillTM-quick change clamping system

Voltage/Frequency 230 V / 50 Hz -60 Hz – 110 V / 50 Hz -60 Hz
Type no. / 10992081 -10992082
Drill diameter range / 40-250 mm
Nominal power / 2.3 kW
Nominal current / 10.5 – A 20
Load speed / 450/730/1250 1/min
No load speed / 720/1150/2000 1/min
Motor cooling / Air
Tool attachment (external) / 1 1⁄4″
Tool attachment (internal) / 1⁄2″
Operation / Rig-based
Application / Wet
Drill rig attachment / ModulDrillTM
Length / 465 mm
Width / 115 mm
Height / 175 mm
Weight / 6.8 kg
