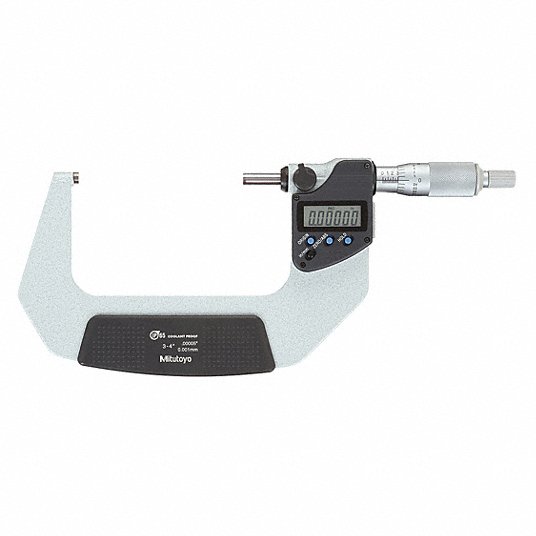

Electronic Micrometer, Range 3 in to 4 in, 76.2 to 101.6 mm, IP Rating IP654CGF7

IP65, IP66, and IP67 digital outside micrometers are used for measuring the outside dimensions of wires, spheres, gauge blocks, and other parts in harsh environments.
– IP65+ micrometers offer protection against solids and dust particles.
– IP65 micrometers protect against low-pressure liquid jets, while IP66 micrometers offer protection from high-pressure liquid jets.
– IP67 micrometers provide protection against short-term submersion in liquids.
– These micrometers have SPC output to transmit data using cables or wirelessly via a receiver to personal computer.
– IP-rated wireless transmitters or cables should be used in harsh environments.

Range / 3 in to 4 in, 76.2 to 101.6 mm
Resolution / 0.00005 in/0.001 mm
Accuracy / +/-0.0001 in
IP Rating / IP65
SPC Output / Yes
Data Output Type / Cable
Coolant Resistant / Yes
Dimension Type / Inch/Metric
Included Certification / Certificate of Inspection
Operation Type / Digital
Thimble Type / Ratchet
Anvil Material / Carbide
Anvil Shape / Flat
Battery Size / SR44

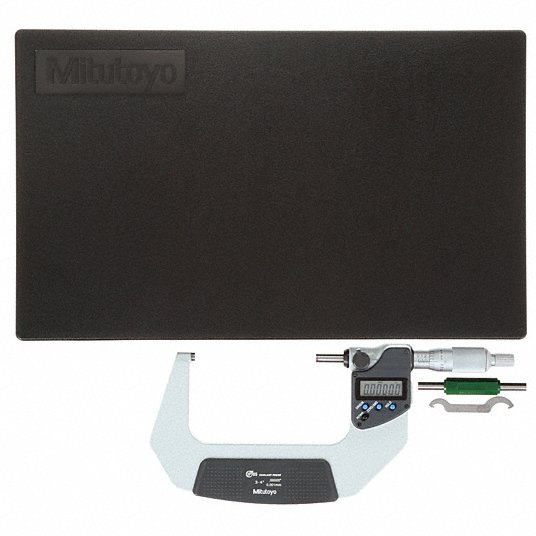

Case Included / Yes
Case Type / Plastic
Compatible Data Output Cable / Mfr. No. 05CZA662, Mfr. No.05CZA663
Display Type / LCD
Functions / Automatic Power On/Off, Data Hold, Origin-Set, Zero-Setting
Includes / Key Spanner, Setting Standard
Includes Battery / Yes
Maximum Measurement – Inch / 4 in
Maximum Measurement – mm / 101.6 mm
Minimum Measurement – Inch / 3 in
Minimum Measurement – mm / 76.2 mm
Spindle Diameter / 6.35 mm
Spindle Material / Carbide Tipped
Spindle Shape / Flat
