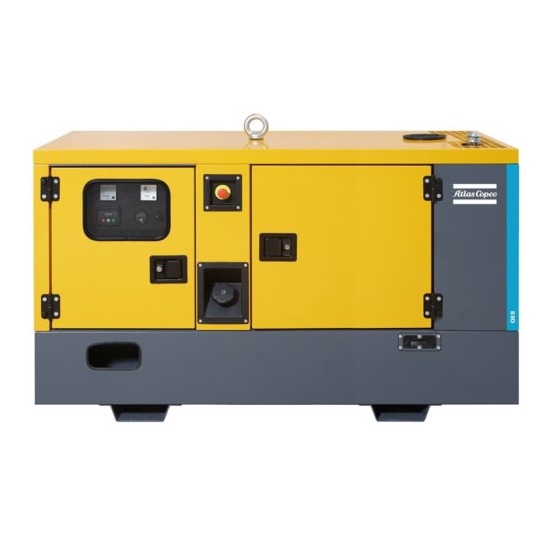

Generator 140 KVA prime power, Perkins engine

Atlas Copco ( The mobile QES generators )

Specifically developed for construction, retail and general rental industries, the QES range is easy to use and straightforward to maintain. It’s the practical predictable power choice –even for the most demanding worksites. The corrosion treated, water-proof canopy, along with the ability to work at high and low ambient temperatures makes the QES range a great choice. With a full option list you could ever need and ready operate in just a few seconds, this range is ready to move from one job to another, one application to another. Features : INTEGRATED CONTROL AND POWER CUBICLE: • Qc1112 digital controller for local and remote start • 4 Pole breaker & battery charger(1) • Emergency stop • Dedicated socket compartment(1) SUPERIOR ACCESSIBILITY: • Optimal serviceability through big access doors and panels • Access to alternator (AVR and diode bridge) • Full access to engine • Direct radiator cleaning access panel PLUG AND PLAY CONNECTION: • Plug and play cable connection • Pass through cable path, natural bend and strain relief • Rain cap • Hot parts, fan and belt protection(1) SERVICE EFFICIENCY: • Decreased service downtime due to heavy duty fuel filtration system with water separator(2) > 65kVA • Dual stage air filtration • Oil drain pump(1) • 500hrs Service interval NOISE PROTECTION: • Sound attenuated and C3M anticorrosion protection canopy TRANSPORT EFFICIENCY: • Integrated forklift slots (Galvanized > 180kVA) • Lifting structure with single external elevation point(1) • Retention bund 110% self containment with level sensor alarm(1) PERFORMANCE: • High cooling performance radiator with Par COOL for 100% standby power operation • Sound attenuated and anti-corrosion steel enclosure • Alternator IP23 with optional Auxiliary Winding(1) • Electronic governor engine and electronic engines

Electrical data:
Rated frequency Hz / 60
Rated voltage (1) V / 480
Prime power (PRP) kVA / kW / 144/112
Rated standby power (ESP) kVA / 153/122
Power factor cos φ / 0,8
Rated current (PRP) A / 168,7
Performance class acc. ISO8528/5 / G2
Operating temperature (min/ max) (2) oC / -10/50
Fuel consumption:
Fuel consumption Fuel tank capacity (Standard / 24h / 48h) l / 225 / 646 / 1273
Fuel consumption at 100% PRP load l / h / 33,3
Fuel autonomy at full load (Standard / 24-48H / 1000l
fuel tank) h / 6,8
Control panel:
Model — standard / Qc1112
Battery Charger (Optional) DSE9255
Engine:
Model / 4BTA3.9-G2
Speed rpm / 1800
Rated net power kWm / 136,4
Aspiration / Turbo charger
Speed control / Electronic governor
Number of cylinders / 6
Coolant / water-cooled
Swept volume l / 5,9
Alternator:
Model / ACA270C
Rated Output (ESP 163o/27oC / PRP 125o/40oC) kVA /
162/150
Degree of protection / Insulation class / IP23/H
Excitation type / AVR model / Shunt/SX460
Noise level:
Sound power level (LwA) dB(A) / 105,1
Sound pressure level (LpA) at 7m dB(A) / 75
Dimensions and weight:
Length (standard ) mm / 2910
Width (standard ) mm / 1120
Height (Standard / 24h / 48h* ) mm / 1685 / 2060 /
2235
Weight wet without fuel (Standard / 24h / 48h* ) kg / 1538 / 2005 / 2185
Skid dimensions (L x W x H) mm / 3145 x 1097 x 150
Skid weight kg / 166
