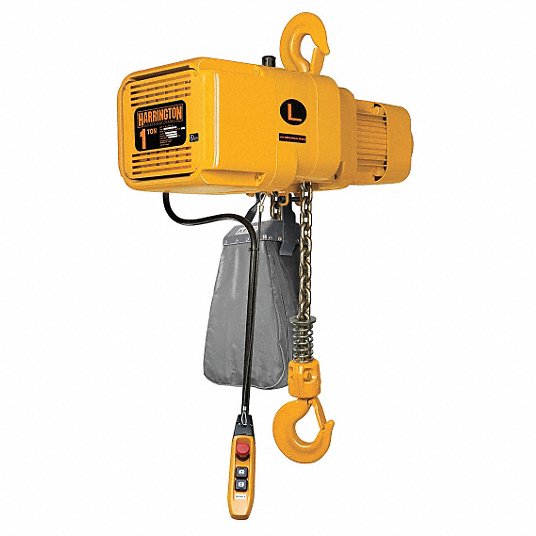

H4 Electric NER Chain Hoist, 2,000 lb. Load Capacity, 230V, 10 ft. Hoist Lift, Lift Speed 14/2.5 fpm, 2 Speed

Features

Electromagnetic brake Grade 80 nickel-plated steel chain Meet ASME B30.16
Designed to handle heavy- and severe-duty applications.
The variable-speed duty cycle is 30/10 min.
with under-the-cover variable frequency drive with 2-step infinitely variable control and speed ratio of 6:1, adjustable up to 12:1.
Include smart brake technology.
H4 Rated Die-cast aluminum Friction clutch Oil bath lubrication Include chain container

Electric Hoist Item / Chain Hoist
Load Capacity / 2,000 lb
Hoist Lift / 10 ft
Classification / H4
Number of Speeds / 2
Lift Speed / 14/2.5 fpm
Motor HP / 1.2 hp
Voltage / 230
Phase / 3
Min. Between Hooks / 16 15/16 in
Amps @ Low Volts / 5.1 A
Housing Depth / 8 5/16 in
Housing Length / 24 3/32 in
Housing Width / 9 11/16 in
Reeving / 1
Brake / DC Current
Clutch / Friction
Control / 110V Push Button Control Pendant
Control Cord / 6 ft
Color / Yellow
Finish / Electrostatic Enamel
Hz / 60
Lubrication / Oil Bath
Thermal Protection / Yes
Standards / ASME B30.16, ASME HST-1M, NFPA 70, RoHS, UL1340
Includes / Chain Container, Quick Disconnect Plugs On Pendant and Power Cord
Hoist Mount / Hook Mounted – No Trolley
