Heavy-Duty industrial inverter welding Machine, 400 Ampere, 380-440Volt, 3Phase, 50/60Hertz,35.2Kg

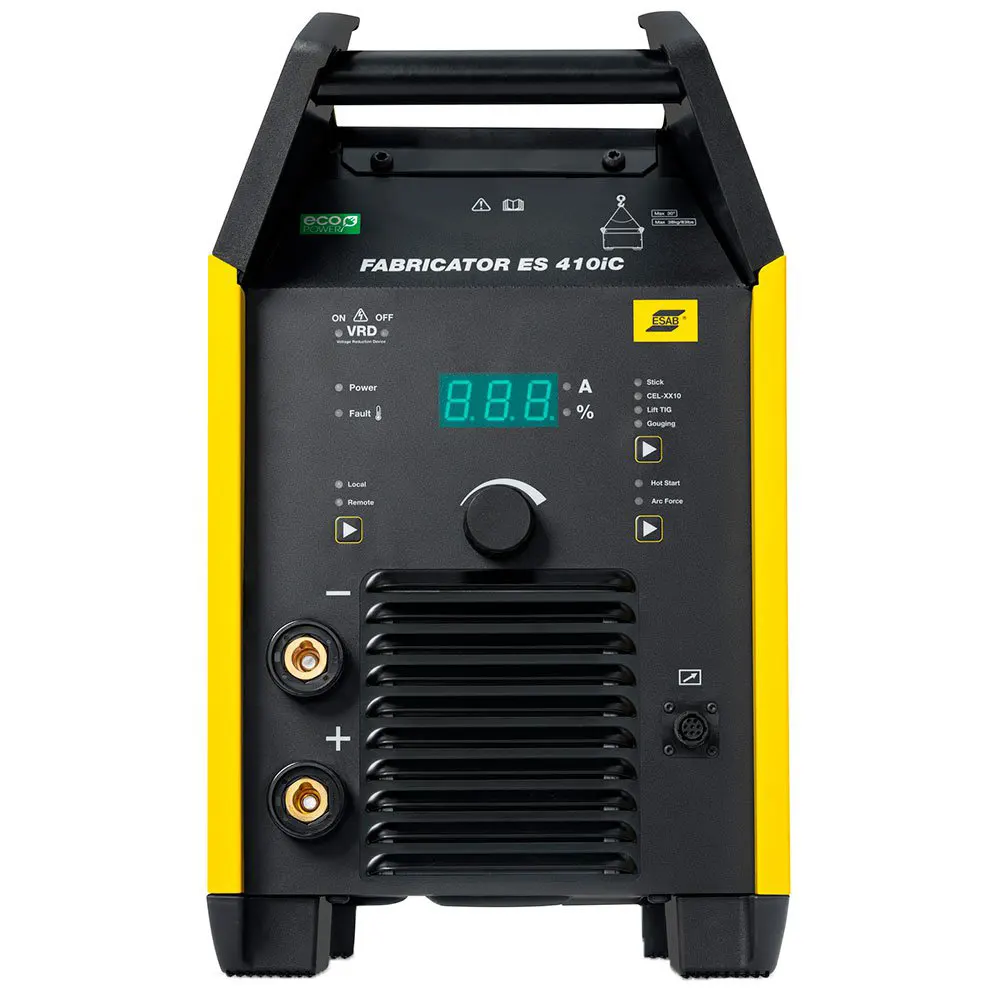

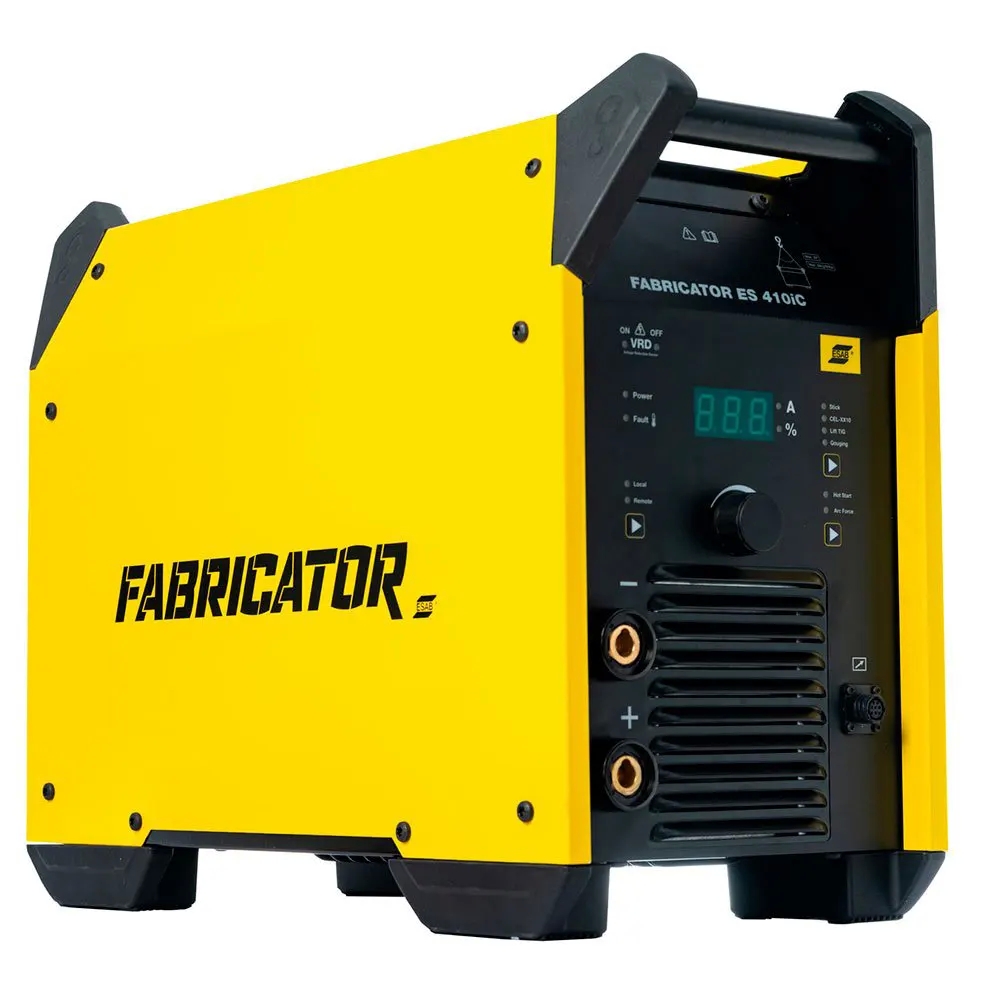

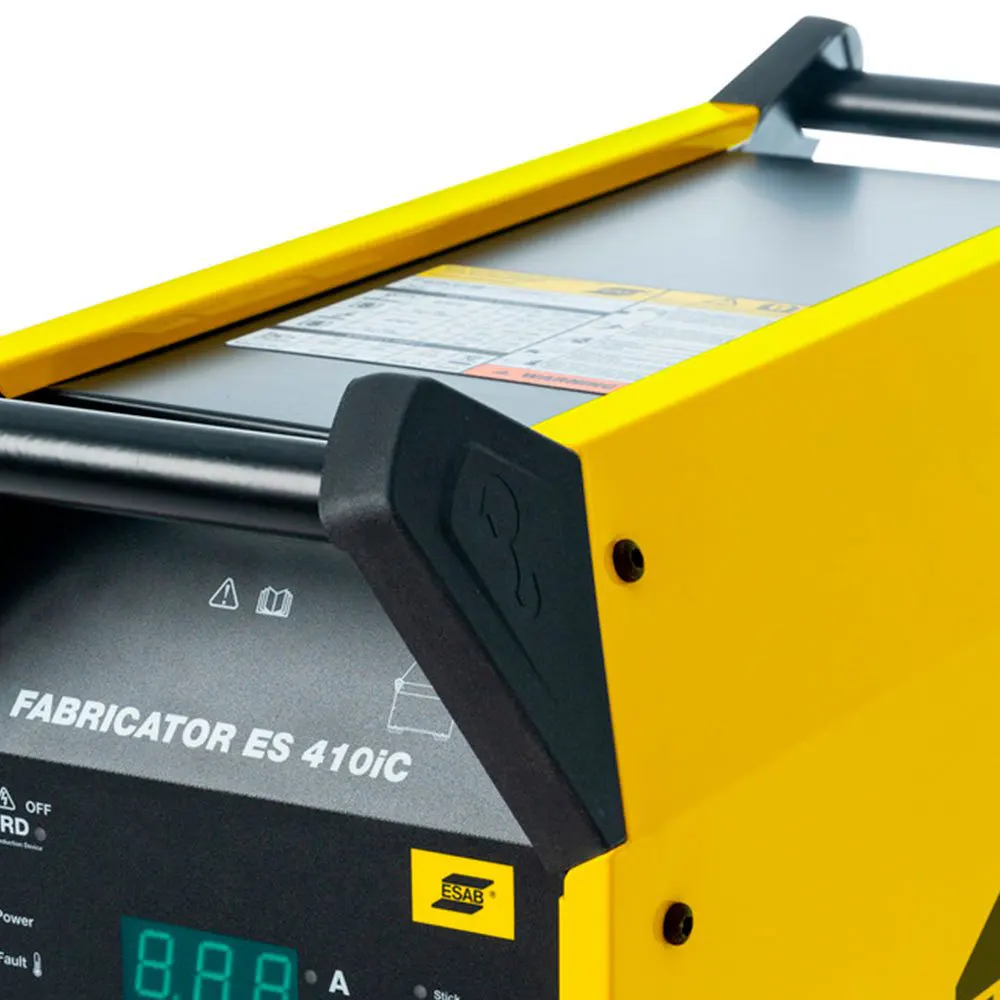

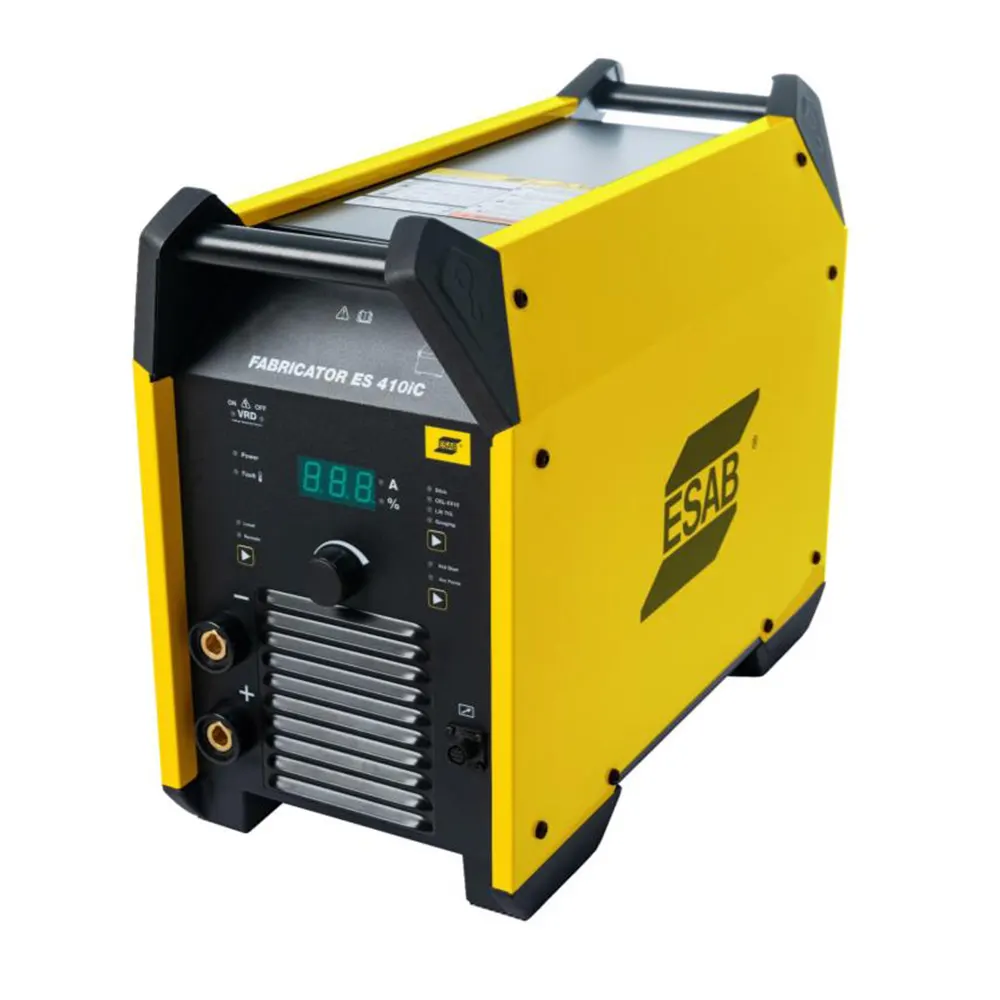

Esab Fabricator ES 410iC
Fabricator ES 410iC is a heavy-duty inverter controlled power source for MMA (Stick) welding, TIG(live-TIG) welding and CC Carbon-Air Arc Gouging.The Fabricator ES 410iC is built to withstand rugged use making it a perfect solution for industrial usage.Ideal for heavy industries using all types of electrodes, including Cellulosic.
Features

The intuitive control panel of the ES 410iC makes it easy to optimize settings, reducing the time taken for achieving the best weld characteristics
Equipped with Hot Start and Arc Force with the possibility to adjust parameters during welding. HotStart helps to avoid starting problems while Arc Force sets the intensity of the arc for improved weldquality
Built-in Anti-Stick function to prevent the electrode from getting accidentally stuck in the puddle
Wide mains voltage tolerance allows for stable welding
Inverter controlled for high efficiency and low power consumption

Industry

Pipe Workshops
Industrial and General Fabrication
Civil Construction
Pressure Vessels
Ship and Offshore Yards

Easy to use intuitive control panel
MMA/TIG Welding
 Excellent welding performance with all types of electrodes including Cellulosic

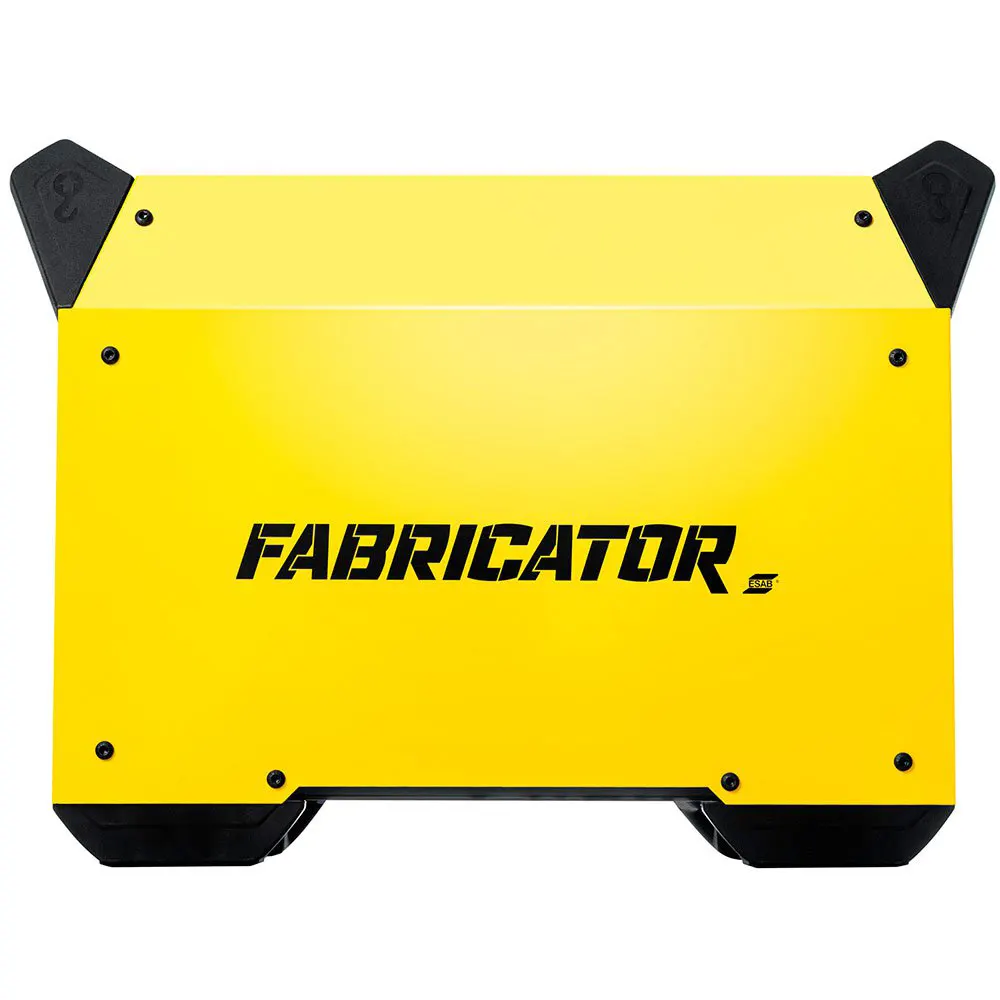

Strong and durable Body
Two handles for easy movement and loading

Mains Voltage (Welding Input) / 380-400-415-440 VAC (-15% +10%), 3 Phase,50/60 Hz
Fuse Slow / 32 Ampere
Welding Output / 400 Ampere at 60% Duty Cycle, at 40°C 310 A at 100% Duty Cycle, at 40°C
Setting Range MMA/TIG / 30 – 410 Ampere/ 10 – 410 Ampere
Efficiency Max Current / 89% MMA and 86% TIG
Idle Power Consumption / 40 W (VRD OFF) 15 W (VRD ON)
Maximum Open Circuit Voltage (Max. With VRD ON) / 76 VDC (15VDC)
Enclosure Class, CCC / IP21S
Enclosure Class, CE / non-CE / IP23S
Operating Temperature / -10 to +40 °C (+14 to +104 °F)
Certification Mark (Standards) / CE – CCC
Dimensions L x W xH / 525 × 280 × 475 mm
