Hydraulic Hand Pallet Jack, 3.0ton, 685 × 1220mm, Made In Japan

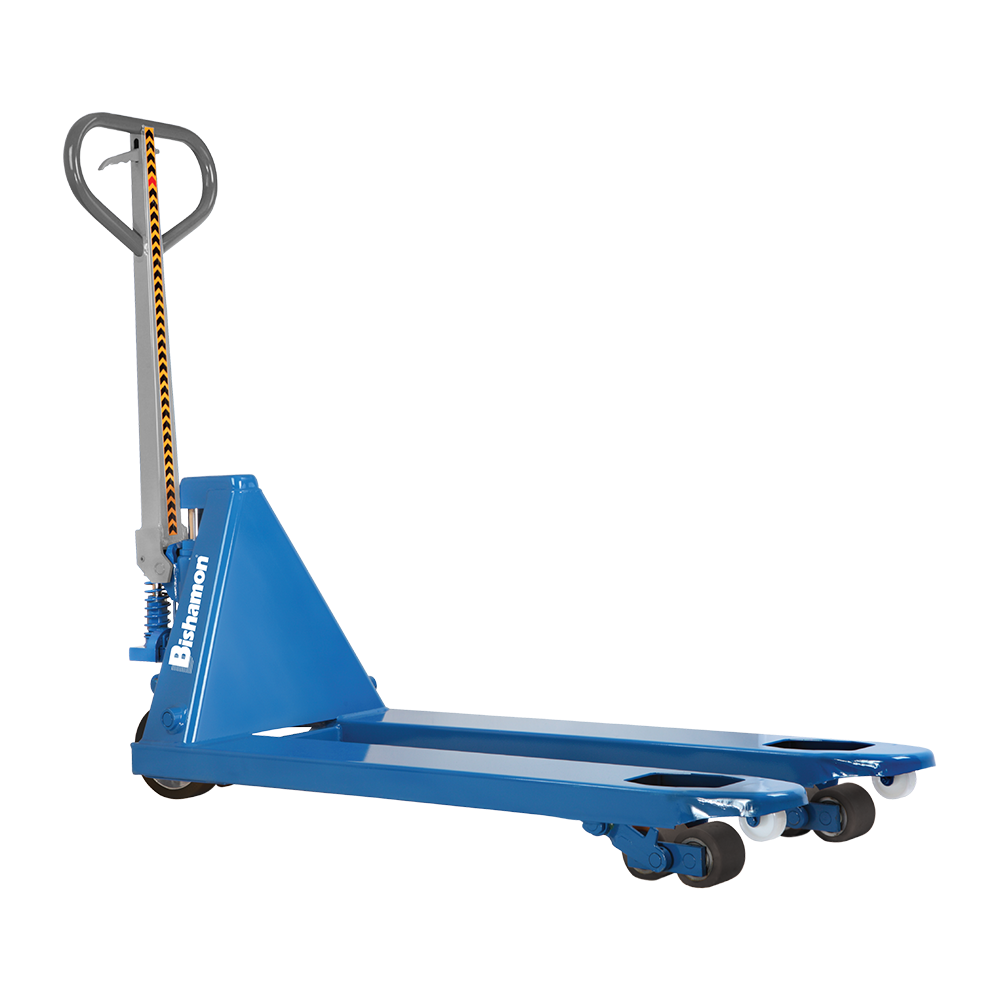

Bishamon Hand Pallet Jack BM30LL
The Bishamon BM30LL Hand Pallet Jack is a heavy-duty material handling designed to carry up to 3 tons of weight. It is constructed with a high-tensile steel plate to ensure durability and longevity. The forks are 1220mm long and 685mm wide, making them suitable for handling large pallets with ease. This Hand Pallet Jack features a neutral mechanism for smooth steering and aluminum wheels for improved maneuverability. Additionally, the 3-Position Fingertip Control Lever provides easy fingertip control of complete hydraulic, while the Comfortable Molded Grip Handle allows for a secure and comfortable grip. Outstanding Durability: Adopted “High Tensile Steel” which is both very light and strong for the main body frame to enhance durability.
Bishamon Hand Pallet Jack Features:

Ergonomic three-position hand lever controls lift, lower, and neutral functions with the handle in any position.
Designed and constructed for lifting and moving applications under the toughest working conditions
Handle swivels through 210 degrees.
Steering head and hydraulic assembly use quality, low-friction thrust bearings.
High-quality polyurethane wheels and load rollers provide superior rollability and durability.
Rugged construction, with high-strength steel and continuous welds.
One-piece formed forks add strength and durability.
Durable formed steel entry slide guides the truck into pallets and diverts debris.
Solid steel, non-adjustable push rods increase durability.
They are designed and manufactured to easily move palletized loads. By utilizing top-quality components and advanced manufacturing techniques

Application Areas

Warehouses
Factories
Supermarkets
Workshops
Cold-rooms and freezers
Loading docks

Designed and manufactured to easily move palletized loads
Exceptional maneuverability in tight quarters
Withstands heavy use in harsh working environments
Easy operation and full control by operator at all times
Designed for tough lifting and moving tasks

Capacity / 3,000
Fork Dimensions A1 / 520 (20 1/2 inch) / 685 (27 inch)
Fork Dimensions A2 / 214 (8 1/2 inch) / 379 (15 inch)
Fork Dimensions B / 1,070 (42 inch) / 1220 (48 inch)
Fork Dimensions D1 / 80 (3 1/4 inch)
Fork Dimensions D2 / 203 (8 inch)
Wheels Material / V/V Bogic wheels
