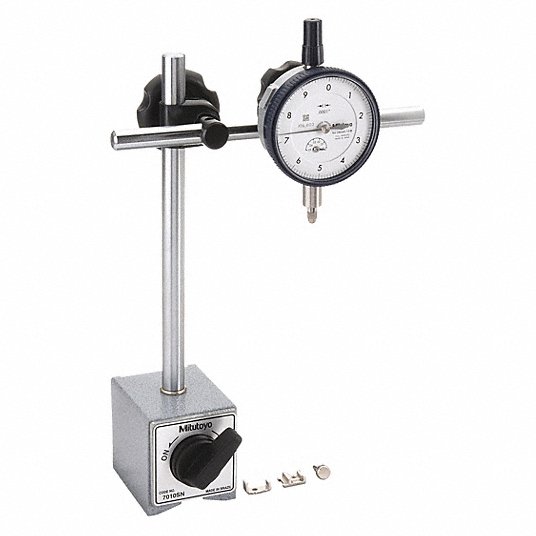

Item Dial Indicator & Mag Base Set, 20 in, Magnet Type On-Off Switch, Dimension Type Inch

Dial indicator and base sets include a plunger-style or back plunger-style dial indicator and a holder with a magnetic base, ensuring compatibility.

Range / 0 in to 1 in; 0 mm to 25.4 mm
Graduations / 0.001 in
Accuracy / +/-0.0001 in (first 2.5 revolutions); +/-0.0002 in (overall)
Long Form Calibration Certificate / No
Dial Color / White
Dial Reading / /0-100
Dimension Type / Inch
Included Base manufacturer Model No / 7010S
Included Certification / Certificate of Inspection
Included Indicator and Base / 2804S-10, 7010S
Included Indicator Manufacturer Model No / 2804S-10
Indicator Style / Plunger
Maximum Measurement – Inch / 1 In
Maximum Measurement – mm / 25.4 mm
Minimum Measurement – Inch / 0 in
Minimum Measurement – mm / 0 mm
Operation Type / Mechanical
Reading / Continuous
Stem Thread Size / #4-48 UNF
Test Indicator Style / Vertical
AGD Number / AGD 2
Arm Type / Post and Arm
Back Type / Lug
Base Height / 232 mm
Base Length / 55 mm
Base Size / 55 mm L X 20 W X 232 mm H
Base Type / Magnetic
Base Width / 20 in
Case Type / No case included
Compatible Indicator Mounts / lug back, stem
Dial Size / 107 mm
Holding Power / 600 N
ncludes Snug / Yes
Magnet Type / On-Off Switch
Standards / ISO, ISO / IEC Guide 98-3, ISO 14253-2, JIS B 0641-1
Compatible SPC Cable / Standard, Series 2
Compatible Wireless Transmitter / This is not an electronic indicator so this attribute does not apply
Resolution / 0.00005 in / 0.001 mm
