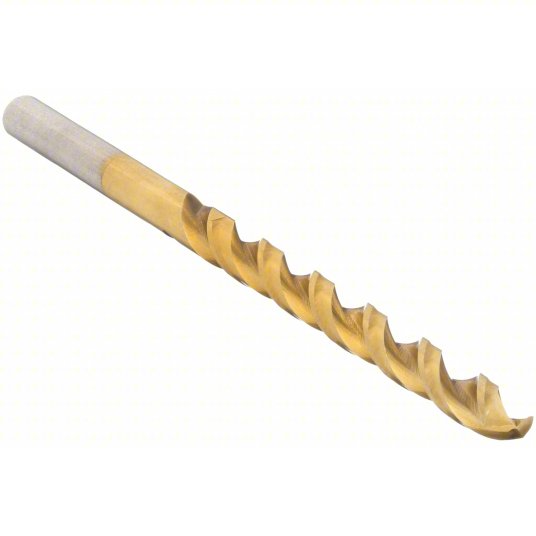

Jobber Length Drill Bit, 4.50 mm Drill Bit Size, 47.00mm Flute Length, 80.00mm Overall Length

Westward 6PRY2 Jobber Length Drill Bit
Introducing Breakthrough Durability with a special TiN coating that shields these bits from wear and high temperatures, making them perfect for drilling steel, stainless steel, and aluminum. This means lasts longer and fewer replacements are needed. The wider, deeper design efficiently removes chips as you drill, keeping the bit cool and preventing binding. This allows you to maintain speed and achieve clean, precise holes even in deep cuts. The straight shank ensures compatibility with most drill chucks and tool holders.

Drill Bit Size / 4.50 mm
Decimal Equivalent / 0.1772
Measurement System / Metric
Material – Machining / High-Speed Steel
Finish – Machining / TiN
Drill Bit Point Angle / 135 °
Drill Bit Point Type / Split Point
Coolant Fed / Non-Coolant Through
Number of Coolant Holes / 0
Flute Type / Parabolic
Number of Flutes / 2
Flute Length / 47.00mm
Helix Angle / 35° to 45°
Cutting Direction / Right Hand
Spiral Direction / Right Hand
Shank Type – Machining / Straight
Shank Length / 33.00 mm
Overall Length / 80.00mm
Depth Dia. Ratio / 4xD
Drill Length Class / Jobber Length
Standards / DIN 338
Aircraft Drill / No
Drill Diameter Tolerance / +0.0000 inch/-0.0007 inch
Sheeter Drill / No
Web Thinning / Thinned
Material Grade – Machining / High Performance
Primary Material Application / Aluminum and Non-Ferrous Material; Cast Iron; Steel
Primary Material Application ISO Code / K; N; P
Maximum Drilling Depth / 1-3/8 inch
