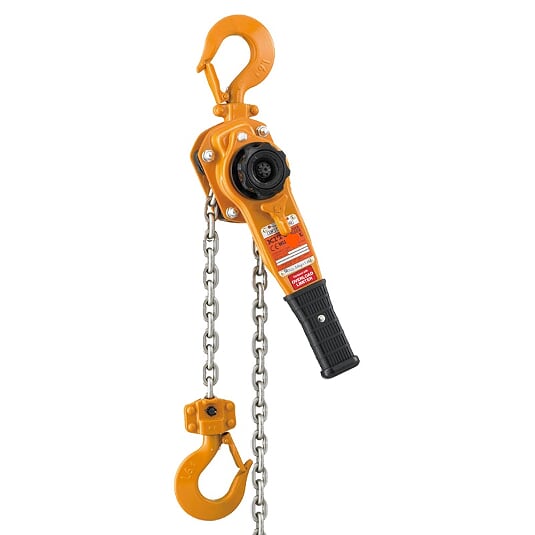

Lever Hoist ,0.8 Ton, Chain Length 1.5 Meter, 6 Kg, Made In Japan

Features

LEVER HOIST from KITO, 0.8TON X 1.5MTR.
Smaller and lighter easy to carry and store, much easier to use, even in a narrow working spaces.
Nickel-plated chain, produces world-class performance, toughness and resistance to corrosion & wear.
High-strength frame High grade alloy steel with solid construction.
Lever Handle with A new shape and thicker material creates a very strong lever handle.
Hook Latch with safety mechanism with Thicker material makes the latch stronger, and engagement with the tip of the hook creates secure closure.
Hooks are forged from high strength alloy steel allowing the larger capacities.
21/2 through 9 ton – to use hooks that are smaller and lighter.
Cap Nuts fasten the gear case and brake cover protecting the screw from damage and making maintenance easier.

Totally encapsulated and dust-tight brake
Free chain system gives fast adjustment of chain length
Nickel plated load chain
Light and compact
Rugged lever handle

Rated load (W.L.L.) / 0.8
Standard lift (m) / 1.5
Hand-pull to lift full load (n) (kg) / 284 (29)
Load chain diameter x chain fall (mm) / 5.6×1
Test load (kg) / 1200
Mass (Net weight) * (kg) / 6
Shipping weight (Approx.)(kg) / 6.3
Weight for additional one meter of lift (kg) / 0.7
Dimensions (mm) / A / 144
Dimensions (mm) / B / 119
Dimensions (mm) / C / 280
Dimensions (mm) / D / 245
Dimensions (mm) / E / 97
Dimensions (mm) / G / 23.5
Dimensions (mm) / S / 35.5
Dimensions (mm) / T / 14
