Liquid 1 Electronic Flowmeter, Glass Filled Polypropylene, 2 to 20 gpm
863,33 ر.س
Features

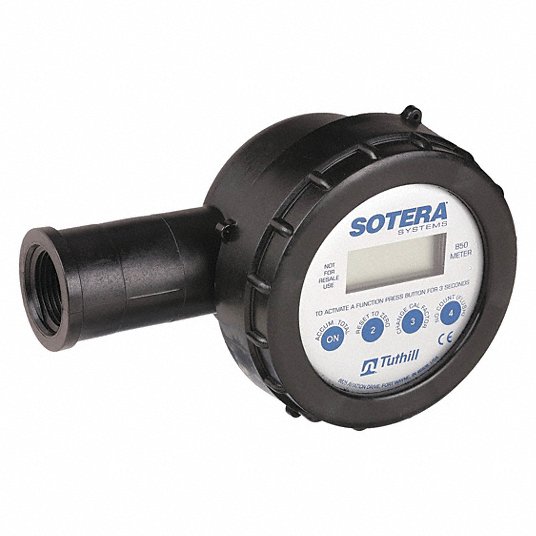

This nutating disk, positive displacement SOTERA electronic flowmeter uses magnetic coupling to convert fluid flow into digital display information.
Model can store and display the current flow amount (current total), or cumulative flow amount (totalizer) in any of 5 user-specified units (ounces, pints, quarts, liters, and gallons) or special units (e.g. per acre volume).
Easy-to-calibrate meter can be calibrated without dispensing fluid by just selecting a calibration factor from the 20 stored settings.
Unit is powered by field replaceable batteries.
Flowmeter Product Group / Electronic Flowmeter
For Pipe Size / 1 in
Connection Size / 1 in
Connection Type / FNPT
Fluid Temp. Range / -10 Degrees to 130 Degrees F
Wetted Materials / EPDM
Max. Pressure / 100 psi
Flow Range / 2 to 20 gpm
Max. Viscosity / 100 SUS
Type / Liquid
Housing Material / Glass Filled Polypropylene
Flow Range (GPM) / 2 to 20
Flow Range (LPM) / 7.6 to 75.7
Accuracy (%) / +/-0.5
Length (In.) / 5 in
Width (In.) / 5 in
Height (In.) / 5 5/8 in
