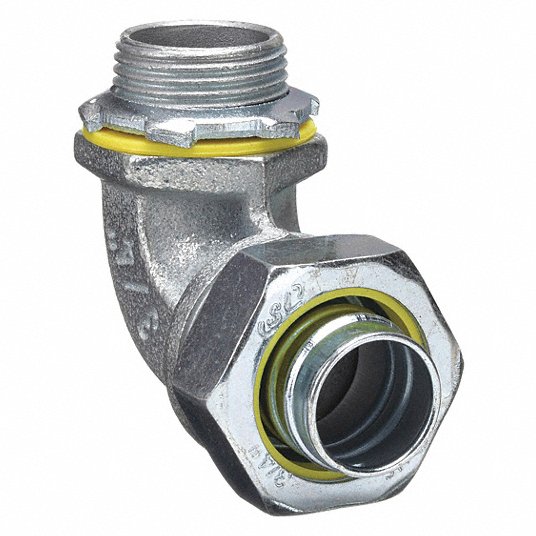

Liquid-Tight Conduit Fitting, Steel/Iron, 1 1/4 in Trade Size, 90° Elbow, Non-Insulated

The locknuts are all steel for greater mechanical hold.
– The sealing ring maintains a liquid-tight seal in a threadless opening.
– The smooth-ended grounding ferrules can be removed easily without distortion.
– The patented split gland ring slips on quickly even if the conduit end is not cut squarely.

Insulated / No, Non-Insulated
Trade Size / 1 1/4 in, 1 1/4 in
Compatible Conduit Type / Flexible Liquid Tight Metallic Conduit, Flexible Liquid Tight Non-Metallic Type B Conduit
Box Connection / 1 1/4 in MNPT
Material / Iron, Steel, Steel/Iron
Color / Gray
For Use With / Flexible Liquid Tight Metallic Conduit, Flexible Liquid Tight Non-Metallic Type B Conduit
Connection Orientation / 90 Degrees, 90 Degrees Elbow
Hazardous Location Rating / Class I, Division 2, Class II, Division 1 and 2, Class III
Compatible Knockout Trade Size / 1 1/4 in
Connector Style / 90 Degrees
Indoor/Outdoor Usage / Indoor/Outdoor
Overall Height / 4 1/4 in
Overall Length / 2 7/16 in
Overall Width / 2 7/16 in
Elbow Angle / 90 Degrees
Weight / 0.98 lb
Standards / CSA C22.2 No. 18 Certified, Standard 514B, UL Listed E195969
