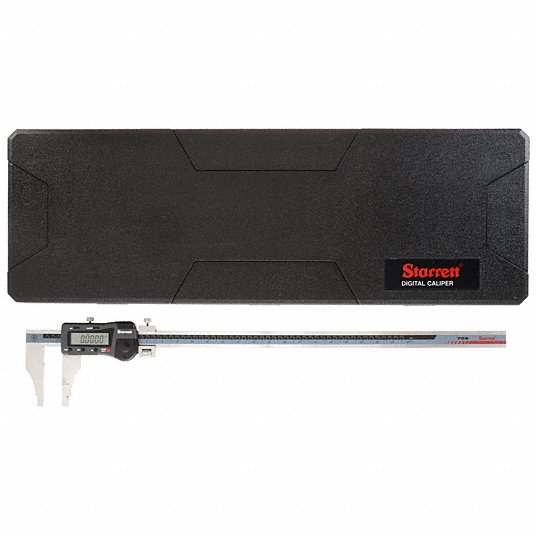

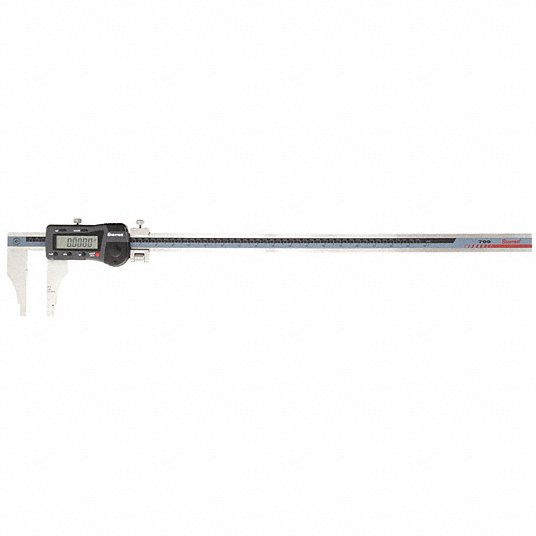

Long Range Digital Caliper, Range 0 in to 24 in, 0 to 600 mm, IP Rating Not Rated, SPC Output No

Digital calipers have adjustable jaws that slide along a beam to measure between two opposite sides of a tool or part. – They are easier to read and offer higher precision than dial or vernier calipers. – These calipers do not have SPC output capability, and are used when a direct reading is needed or for recording measurements by hand.

Range / 0 in to 24 in, 0 to 600 mm
Resolution / 0.0005 in/0.01 mm
Accuracy / +/-0.002 in, +/-0.05 mm
Absolute Positioning / Yes
Caliper Grouping / Digital Caliper
Caliper Material / Stainless Steel
Dimension Type / Inch/Metric
Jaw Actuation Type / Thumb Wheel
Jaw Depth / 4 in
Jaw Material / Stainless Steel
Minimum Measurement – Fractional Inch / 0 in
Maximum Measurement – Inch / 24 in
Maximum Measurement – mm / 600 mm
Measurements / Outside, Inside
Measures Inside Dimension / Yes
Measures Outside Dimension / Yes
Minimum Measurement – Inch / 0 in
Minimum Measurement – mm / 0 mm
Display Type / LCD
Battery Size / CR2032
Case Type / Plastic Case
Functions / Position Retained When Shut Off, Zero, Auto Power Off, Inch/mm
Includes Battery / Yes
Includes Case / Yes
Jaw Depth – Upper Jaw / 11/16 in
Jaw Shape / Nib-Style
Standards / DIN 862
With Locking Nut / Yes
