Magnetic Drill Machine, Drill Capacity 16mm~50mm, Magnetic Force 16200N, 15kg

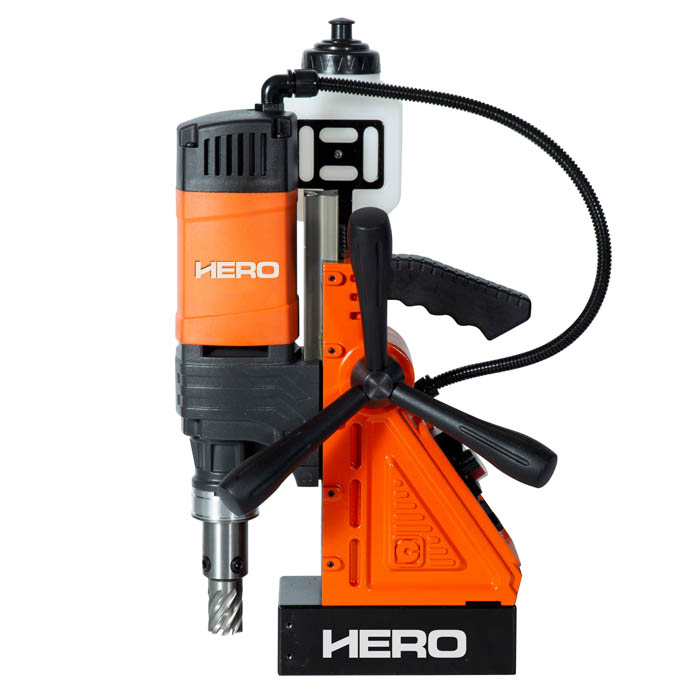

Hero Magnetic Drill H-SCY/50WO
The HERO H-SCY/50WO Magnetic Drill Machine is engineered for professional-grade performance in metal drilling operations. Featuring a powerful 1650W motor and high magnetic adhesion of 16,200 N, this machine guarantees stability and precision even under the toughest conditions. Its 50 mm core drill capacity and 40 mm cutting depth make it an ideal solution for fabrication, construction, and heavy-duty maintenance tasks. Operating at 780 rpm, the drill delivers consistent output with every use. The 220 mm stroke length ensures deep penetration, while its compact build and ergonomic design make it perfect for use on-site or in industrial workshops.
Hero Magnetic Drill Features

Strong Magnetic Base: Delivers up to 16,200 N of magnetic force for maximum grip on metal surfaces.
High-Powered Motor: 1650W ensures uninterrupted performance on dense materials.
Wide Drilling Capacity: Supports core drills up to 50 mm and twist drills up to 16 mm.
Extended Stroke Length: 220 mm stroke enhances drilling depth and versatility.
Compact Design: Weighs just 15 kg and comes in a 52×16×43 cm case for easy transport.

Application Fields

Steel Fabrication Workshops: Ideal for precision drilling in metal beams and plates.
Construction Sites: Used for on-site drilling in structural steel frameworks.
Shipbuilding Industry: Suitable for maintenance and assembly of ship components.
Bridge & Infrastructure Projects: A Reliable tool for high-strength steel applications.
Maintenance and Repair: Versatile use in industrial machinery servicing.

Delivers precise results on vertical or overhead surfaces.
Capable of core drilling up to 50 mm in diameter.
Powerful 1650W motor ensures long-term durability.
16200 N magnetic force offers exceptional holding power.
Lightweight and portable design for field applications.

Model No. / H-SCY/50WO
Core Drill Dia (mm) / 50
Twist Drill Dia (mm) / 16
Rated Voltage (V) / 220
Rated Frequency (Hz) / 50/60
Rated Input Power (W) / 1650
No-load Speed(1) (rpm) / 780
Max Attraction (N) / 16200
Cutting Depth (mm) / 40
Stroke (mm) / 220
Cable Length (m) / 2.5
Net/gross Weight (kgs) / 15
Packing Size (cm) / 52*16*43
