Mechanical Outside Micrometer, 4-inch to 5-inch Range, +/-0.0015 inch Accuracy

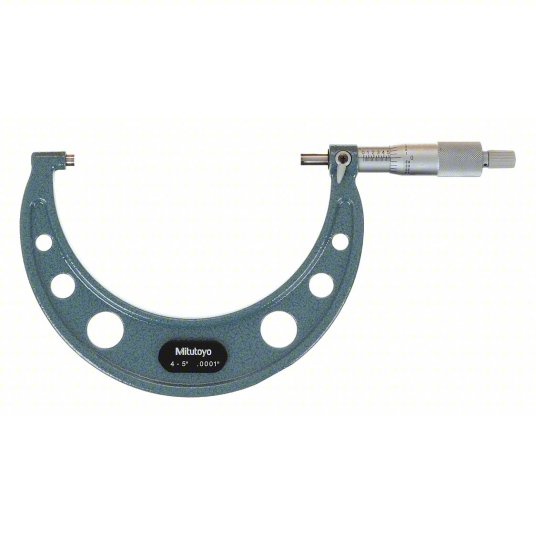

Mitutoyo Micrometer 103-219
The Mitutoyo outside micrometers series 103 features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings. Available in metric and inches. The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism on the 103-219 provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single handed operation.
Mitutoyo Micrometer Features:

These mechanical outside micrometers are the standard/classic micrometer design for most high-precision outside dimension measurements when a higher resolution than a caliper is required.
Operators open the jaw with the thimble insert a workpiece between the measuring faces and close the jaws.
The main scale is then read and then added to the graduations on the vernier scale to provide the exact measurement.
They are commonly used to measure the outside dimensions of raw materials, whole workpieces, and features in production, QA, and inspection environments in both metalworking and other industrial applications.

Equipped with Ratchet Stop for constant measuring force
Vernier scale in inch units for taking precise outside diameter (OD) measurements
Ratchet-stop mechanism helps provide uniform pressure for precise
repeatable measurements
Baked enamel finish for protection and durability of frame
Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
Carbide facing on spindle and anvil provides wear resistance

Range / 4 inch to 5 inch
Accuracy / +/-0.0015 inch
Long Form Calibration Certificate / No
Dimension Type / Inch

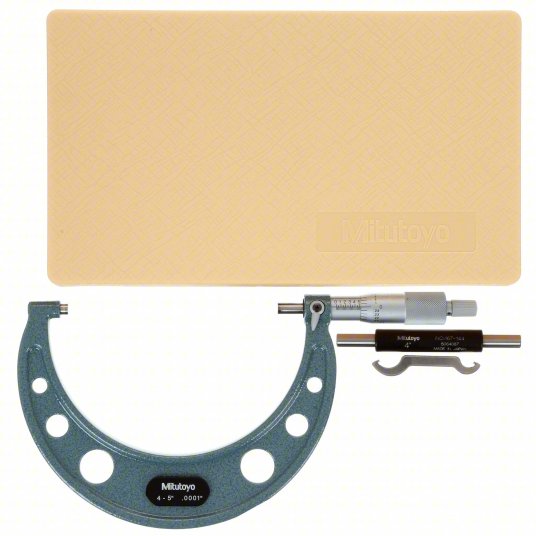

Included Certification / Certificate of Inspection
Mechanical Display Type / Vernier
Thimble Type / Friction/Ratchet
