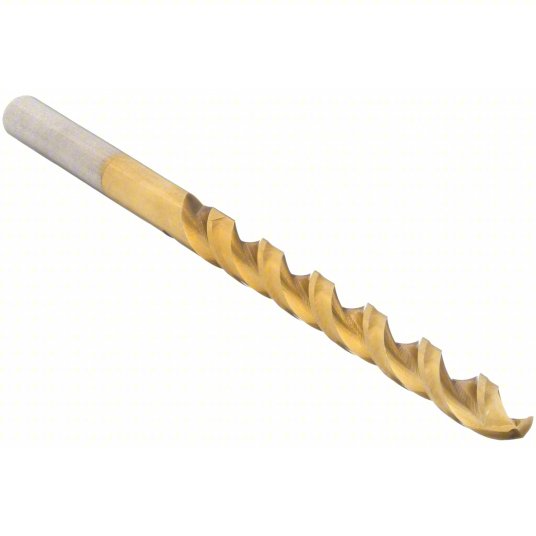

Metal Drill Bit, 3 mm Drill Bit Size, 33mm Flute Length, 61mm Overall Length

Westward Metal Drill Bit 6PRX9
The TiN coating on these drill bits provides protection against wear and heat when drilling steel, stainless steel, and aluminum. The parabolic flute drill bits are designed with wide, deep flutes to improve chip flow and heat dissipation. As a result, the feed rates do not need to be reduced as the drills move deeper into the workpiece. These bits feature a straight shank for easy installation into a drill chuck or similar tool holder.

Drill Bit Size / 3.00 mm
Decimal Equivalent / 0.1181
Measurement System / Metric
Material – Machining / High Speed Steel
Finish – Machining / TiN
Drill Bit Point Angle / 135 °
Drill Bit Point Type / Split Point
Coolant Fed / Non-Coolant Through
Number of Coolant Holes / 0
Flute Type / Parabolic
Number of Flutes / 2
Flute Length / 33.00mm
Helix Angle / 35° to 45°
Cutting Direction / Right Hand
Spiral Direction / Right Hand
Shank Type – Machining / Straight
Shank Length / 28.00 mm
Overall Length / 61.00mm
Depth:Dia. Ratio / 4xD
Drill Length Class / Jobber Length
Standards / DIN 338
Aircraft Drill / No
Drill Diameter Tolerance / +0.0000 inch/-0.0005 inch
Sheeter Drill / No
Web Thinning / Thinned
Material Grade – Machining / High Performance
Primary Material Application / Aluminum and Non-Ferrous Material; Cast Iron; Steel
Primary Material Application ISO Code / K; N; P
Maximum Drilling Depth / 31/32 inch
