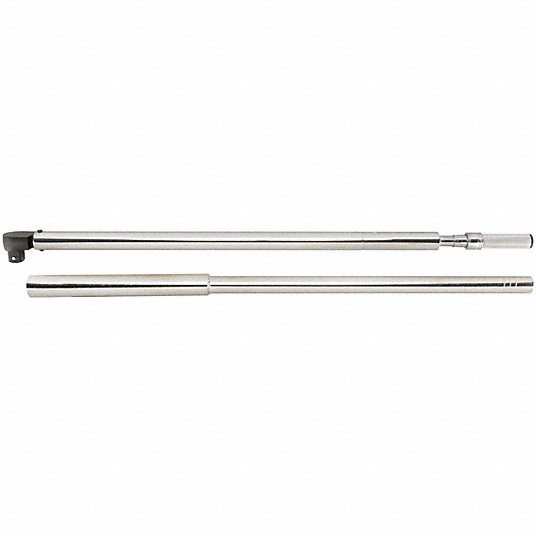

Micrometer Torque Wrench, Foot-Pound, Drive Size 1 in, Torque Range 200 ft-lb to 1000 ft-lb

These non-insulated micrometer torque wrenches do not have a cushioned grip and are not suitable for use near electrical circuits. – They can be set to apply a specific torque to a fastener so that the fastener is not damaged by overtorquing or loosens over time due to undertorquing.

Torque Measurement Type / Foot-Pound
Drive Size / 1 in
Torque Range / 200 ft-lb to 1000 ft-lb
Torque Increments / 5 ft-lb
Primary Scale Minimum Torque / 200 ft-lb
Primary Scale Maximum Torque / 1,000 ft-lb
Head Type / Standard
Rotation / Clockwise and Counterclockwise
Torque Adjustability / Adjustable
Tether Style / Tether Capable
Clockwise Accuracy / +/- 4%
Counterclockwise Accuracy / +/- 6%
Corrosion Resistant / Yes
Torque Limiting Mechanism / Click-Type
Torque Setting / Pre-Set
Visual/Audible Indicators / Audible Click
Finish / Chrome
Material / Alloy Steel
Handle Type / Knurled
Handle Material / Alloy Steel
Handle Color / Silver
Dual Scale / Yes
Min. Arc Swing / 15 Degrees
Min. Number of Cycles / 5,000
Number of Geared Teeth / 24
Overall Length / 69 in
Overall Width / 1 7/8 in
Includes / (1) Case, (1) Extension Handle
Standards / ASME B107.14M
Weight / 24.5 lb
Head Movement / Fixed
