Multi process Welder Machine For MIG/MAG, TIG and MMA, 110 & 220 V, Single Phase, 50/60 Hz, Maximum Output 250 Amp

Esab REBEL EMP235ic
EMP 235ic – the next series of Rebel welding machines that offer TRUE multi-process performance in a portable/mobile package. When it comes to getting around and getting work done, Rebel 235ic is second to none. It’s the most mobile welder in its class and has the power and performance to crush even the most demanding jobs.
Features

True Multi-Process – excellent performance on MIG/MAG, TIG, and MMA.

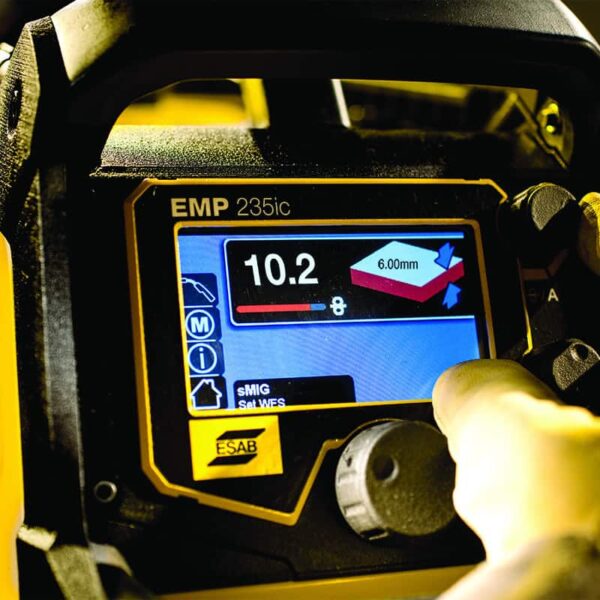

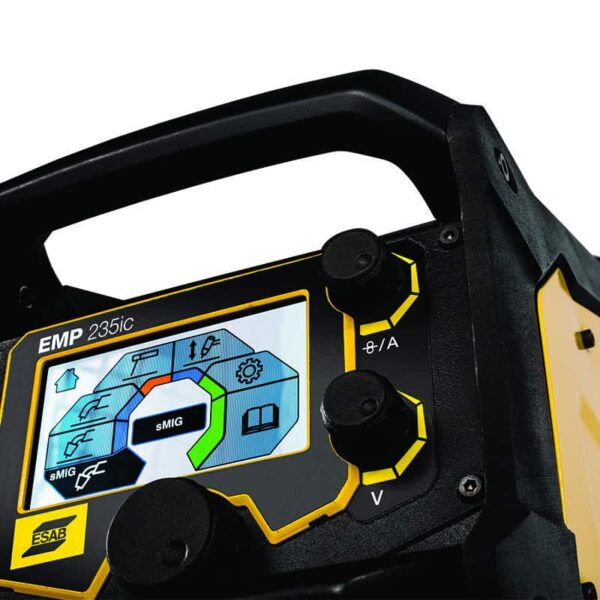

Extremely user friendly and multilingual TFT-panel incorporating spare part lists and weld parameter guides for all processes.
Unmatched Portability – weighing in at 28,6 kg with dual voltage capability and 4 handle roll cage.
Power to Perform – capable of running any wire from 0,6 mm to 1,0 mm and also cored wires up to 1,2 mm on both 200 and 300 mm spools.
Full MMA performance with electrodes up to 4 mm and excellent Lift TIG performance with adjustable pre/post gas flow and weld current ramp up/down.
sMIG Technology – innovative “smart-MIG” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter, material, and plate thickness and you are ready to weld.
Two gas inlets, one for MIG and one for TIG where can be connected simultaneously. Built in TIG gas solenoid valve on the front of the machine eliminating the need for a manual valve on the TIG torch.

Application

General Fabrication
Maintenance & Repair
Construction
Mechanical Contractors
Automotive and Restoration
Farm & Ranch
HVAC
Training Schools

Primary Voltage / 120/230 VAC
Supply Voltage Range / 90 – 270 VAC
Number of Phases / 1
Supply Frequency / 50/60 Hz
Supply Plug / 230 V, Schuko 16A plug
Mains Cable / 3 m 3×2,5 mm2 H07RN-F
Maximum Output / 250 A
MIG Welding Output (230V) 25% Duty Cycle / 230 A – 25.5 V
MIG Welding Output (230V) 40% Duty Cycle / 195 A – 23.8 V
MIG Welding Output (230V) 60% Duty Cycle / 170 A – 22.5 V
MMA Welding Output (230 V) 25% Duty Cycle / 210 A – 28.4 V
MMA Welding Output (230 V) 60% Duty Cycle / 150 A – 26 V
TIG Welding Output (230 V) 40% Duty Cycle / 235 A – 19.4 V
TIG Welding Output (230 V) 60% Duty Cycle / 200 A – 18 V
MIG Welding Voltage Range / 14.8 – 26 V
Wire Feed Speed Range / 2.0 –17.8 m/min
Weldable Materials
Mild Steel / 0.6 –1.0 mm
Stainless Steel / 0.8 –1.0 mm
Aluminum / 0.8 –1.2 mm
Cored wire / 0.8 –1.2 mm
Wire Spool Size / 100 mm, 200 mm, 300 mm
Approvals / CE: IEC/EN 60974-1, 5, 7, 10, 12 & 13. RoHS
Protection Class / IP23S
Power Source Dimensions, Lx W x H / 686 x 292 x 495 mm
Power Source Weight / 28,6 kg
