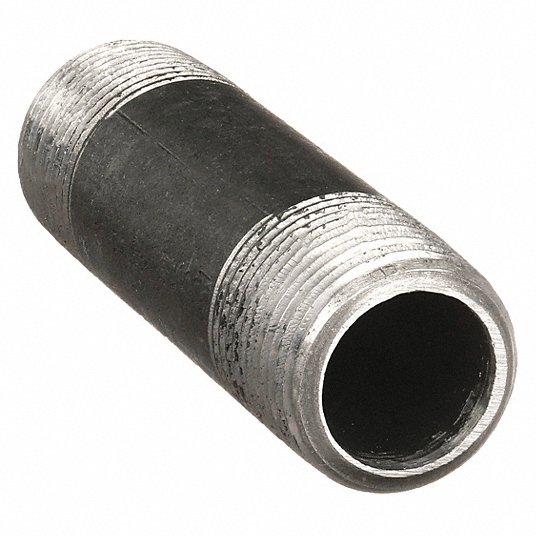

Nipple: 2Inch Nominal Pipe Size, Black Steel, 6Inch Overall Length, Threaded on Both Ends, Schedule 80
62,66 ر.س
Features
Max. pressure: 300 psi WOG at 550°F
Extra-heavy nipples handle higher pressures and more rugged service. NPT threads.
For use in air, water, oil, and gas applications.
Maximum pressure in accordance with ASME B31.3 Process Piping Code.
Meet ANSI/ASME B1.20.1 and ASTM A-53, A733.
Application / Air, Natural Gas, Non-Potable Water, Oil, Steam
Finish/Coating / Black
Fitting Compatibility / Class 300
Inside Diameter /1 15/16 in
Material / Steel
Material Grade / Grade B
Maximum Operating Pressure / 1660 psi @ 650 Degrees F
Maximum Operating Temperature / 600 Degrees F
Maximum Steam Pressure / 1660 psi @ 650 Degrees F
Metal Pipe Construction / Welded
Minimum Operating Temperature / -20 Degrees F
Nominal Pipe Size / 2 in
Outside Diameter / 2 3/8 in
Overall Length / 6 in
Pipe Weld Type / Electric Resistance Weld
Schedule / Schedule 80
Side A Connection Type / Threaded
Side A Gender / Male
Side A Thread Type / NPT
Side B Connection Type / Threaded
Side B Gender / Male
Side B Thread Type / NPT
Standards / ASTM A53 Type E Grade B
Thread Configuration / Threaded on Both Ends
Wall Thickness / 0.188 in
