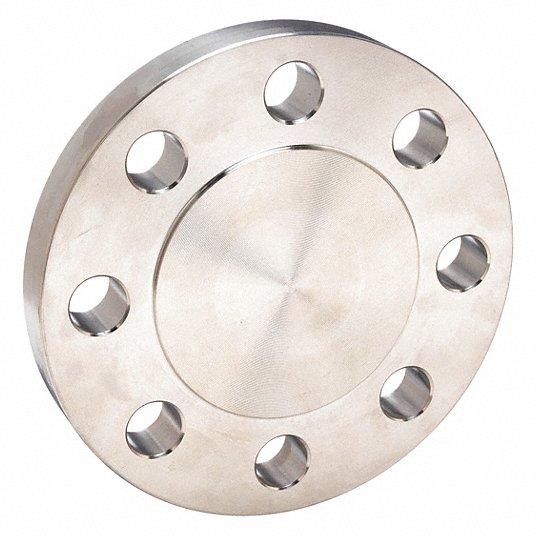

Pipe Flange, Blind Flange, 304/304L Stainless Steel, 2Inch Pipe Size, 6 1/2Inch Flange Outside Dia
242,88 ر.س
Use to blank off pipelines, valves, and pumps, or as an inspection cover.
– Suitable for use with Schedule 40 or 80 stainless steel pipe, in applications with air, water, natural gas, and steam.
Connection Surface / Raised Face
Nominal Pipe Size / 2 in
Fitting Connection Type / Flanged x Blind
Flange Outside Diameter / 6 1/2 in
Flange Thickness / 7/8 in
Overall Length / 7/8 in
Pipe Fitting Material / 304/304L Stainless Steel, Stainless Steel
Material Grade / 304/304L
Class / Class 300
Maximum Operating Pressure / 720 psi
Max. Steam Pressure / 300 psi
Number of Bolt Holes / 8
Bolt Circle Diameter / 5 in
Bolt Hole Diameter / 3/4 in
Standards / ASME A182, ASME B16.5
