Rebar Bending Equipment, Bending Capacity up to 38mm, 4PH, 3KW, Made in italy

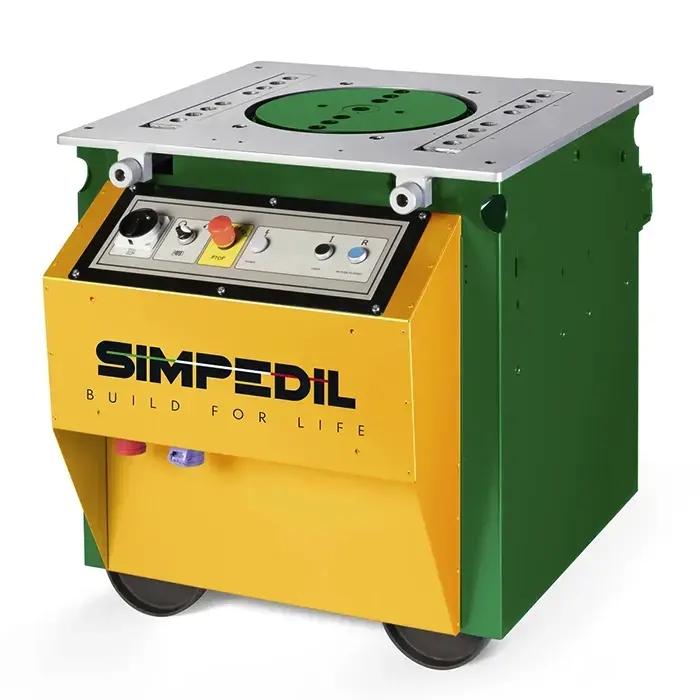

SIMPEDIL P44EVO Rebar Bending Equipment
The SIMPEDIL P54 Evo Rebar Bending Equipment is specifically designed to bend iron bars up to Ø 44 mm, offering high productivity and convenience for users. It can be used from both sides, providing added comfort, and is suitable for even unskilled workers to operate without causing any damage. This Rebar Bending Equipment features a rotary table that can rotate in both clockwise and anticlockwise directions. Furthermore, its four-wheel mount makes it easy to transport to different work sites, adding to its versatility.
SIMPEDIL Rebar Bending Equipment Features:

Combination of advanced functionality and optimal performance.
The design meets the requirements of the international standard.
The protection of electric motors is achieved by utilizing fuses and thermal relays.
The P54 Evo bending bar is specifically engineered to bend iron bars with a maximum diameter of Ø 44 mm.
Large radius bends can be achieved without the need for additional equipment, thanks to the larger rotating plate with a diameter of 550 mm and the additional bushes with diameters of 150 mm and 170 mm.
Manage the bending process effortlessly by utilizing a user-friendly button for initiating and terminating the layout, or make use of the included foot control switch which comes as a standard component.

SIMPEDIL Rebar Bending Equipment Accessories:

1 square pin
1 hardened stirrup bending pin
3 hardened bush-holding pin
1 checking block
1 pedal
Extra bush Ø150

High functionality and efficient performance
Designed to deliver high productivity and suitable for use from both sides
Double direction of rotation in both clockwise and anticlockwise
Mounted on four wheels so can easily be moved to work sites
Easy to use even unskilled workers can use this machine without any damage

RPM / 6
OIL Weight / 13
Description / Re-Bar Bender
Model / P44 EVO Series
Motor / 4 Hp / 3.0 kw
Voltage / 380V
Hertz / 60 Hz
Weight / 500 Kg
Machine Size / 105cm x 95cm x 89cm
Bending Capacity / Rebar Resistance= 65kg/mm²
Single Bar / ∅38mm Diameter
Two Bars / ∅30mm Diameter
Three Bars / ∅24mm Diameter
Bending Capacity / Rebar Resistance= 85kg/mm²
Single Bar / 36mm Diameter
Two Bars / 28mm Diameter
Three Bars / 22mm Diameter
Rotating plate / 460mm
