Steel Rod Bending Machine, Bending Capacity up to 34mm, 3KW, 4Hp, Made in italy

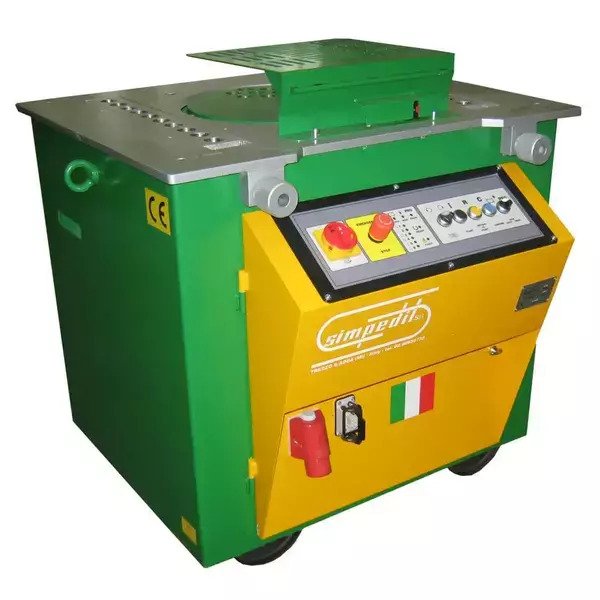

Simpedil Steel Rod Bending Machine P38TTF15
The Simpedil Steel Rod Bending Machine P38TTF15 is designed to efficiently and precisely bend steel bars up to 34mm in diameter, making it suitable for even the toughest jobs. With a powerful 4 HP motor and three-phase system, the Steel Rod Bending Machine can handle demanding construction and fabrication tasks. Despite its robust build, this machine has a compact and portable design, making it easy to transport around the job site. It can also be used to bend steel for fabrication purposes, such as creating frames, brackets, and other structural components.
Simpedil Steel Rod Bending Machine Features:

BAR BENDING MACHINE from SIMPEDIL.
Designed for high productivity and usable from both sides, for the greater comfort of the user.
Special hardened steel gears and pinions constantly operate in an oil bath in a sturdy reduction gear casing.
The Telemecanique switchboard is enclosed in a sturdy metal box and is thus protected against any knocks and blows.
The frame structure and protection guard prevent moving gears, belts, and driving parts from coming into contact with the outside.
The access door to the inside features a Safety switch that stops the machine in case of accidental opening.
The safety switch prevents the bending operation as long as the moving guard remains open.
The two start controls ( one button on the control panel and one pedal unit with a protection device against accidental pressing) are of the “hold to run” type, meaning they have to be kept pressed to ensure operation.
The P38 Evo bending bar is designed for bending iron bars up to a maximum of Ø 34 mm (1,34 inches).
High functionality and efficient performance.
The larger Ø 395 mm rotating plate and extra Ø 120 mm bush achieve large radius bends without the need for additional equipment.
Double direction of rotation: the rotary table works both clockwise and anticlockwise.

Designed for high productivity and usable from both sides
Protection fuses and thermal relays for the electric motor
Two emergency stops using red push buttons
Easy to use even unskilled workers can use this machine without any damage
Design According To The International Standard

RPM / 9
Power / 4 HP – 3 KW
OIL Weight / 8
