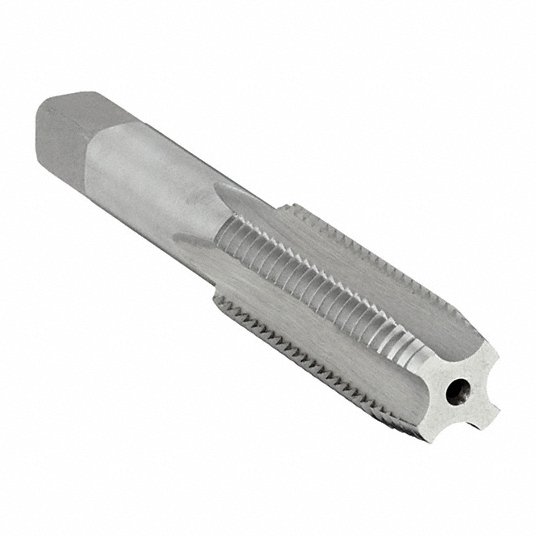

Straight Flute Tap, Thread Size M22x2.5, Metric Coarse, Plug, Overall Length 119.06 mm
171,07 ر.س
Features
The bright finish on these taps provides a smooth, polished surface.
Thread Size / M22x2.5
Thread Standard / Metric Coarse
Tap Chamfer / Plug
Tap Material / High Speed Steel
Tap Finish / Bright (Uncoated)
Thread Length / 56.36 mm
Overall Length / 119.06 mm
75% Thread Drill Size / 19.50 mm
Thread Limit / H6
Thread Direction / Right Hand
Number of Flutes / 4
Tap Length Standard / ANSI
Tap Shank Standard / ANSI
55% Thread Drill Size / 51/64 in
65% Thread Drill Size / 25/32 in
Coolant Fed / Non-Coolant Through
Extended Neck / Yes
Measurement System / Metric
Primary Material Application / Aluminum, Brass, Bronze, Copper
Primary Material Application ISO Code / N
Series / 7353
Shank Dia. / 17.70 mm
Shank Length / 2 15/32 in
Shank Type – Machining / Straight
Spiral Direction / Neutral
Square Size / 13.28 mm
Standards / ANSI
Tap Grouping / Individual
Tap Style / Straight Flute (Hand)
Thread Limit / Class of Fit / H6
Thread Pitch / 2.50mm
